Repair procedures: Removal

Remove the fuel pump.
(Refer to Fuel Delivery System - "FUEL PUMP ")
Disconnect the electric pump wiring connector (A) and the fuel sender connector (B).

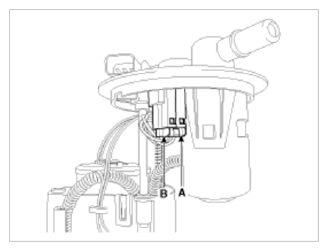

Fig 1: Identifying Electric Pump Wiring Connector And Fuel Sender Connector
Courtesy of HYUNDAI MOTOR AMERICA
Remove the fuel sender (A) in the direction of an arrow.

Fig 2: Removing Fuel Sender
Courtesy of HYUNDAI MOTOR AMERICA

Fig 3: Identifying Fuel Sender
Courtesy of HYUNDAI MOTOR AMERICA
