Repair procedures: Disassembly

Loosen the screw (A-2ea) and then remove the lower cover (B) from the steering wheel body.

Fig 1: Identifying Lower Cover From Steering Wheel Body And Screw
Courtesy of HYUNDAI MOTOR AMERICA

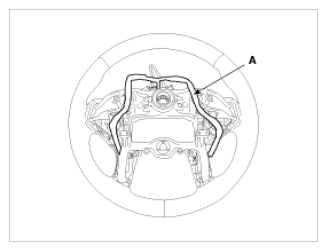

Remove the wiring (A).

Fig 2: Identifying Wiring
Courtesy of HYUNDAI MOTOR AMERICA
Loosen the screw (A-4ea) and then remote control switch assembly (B) from the steering wheel body.

Fig 3: Identifying Remote Control Switch Assembly Screw From Steering Wheel Body
Courtesy of HYUNDAI MOTOR AMERICA
Installation is the reverse of the removal.
