Components and Components Location: Components

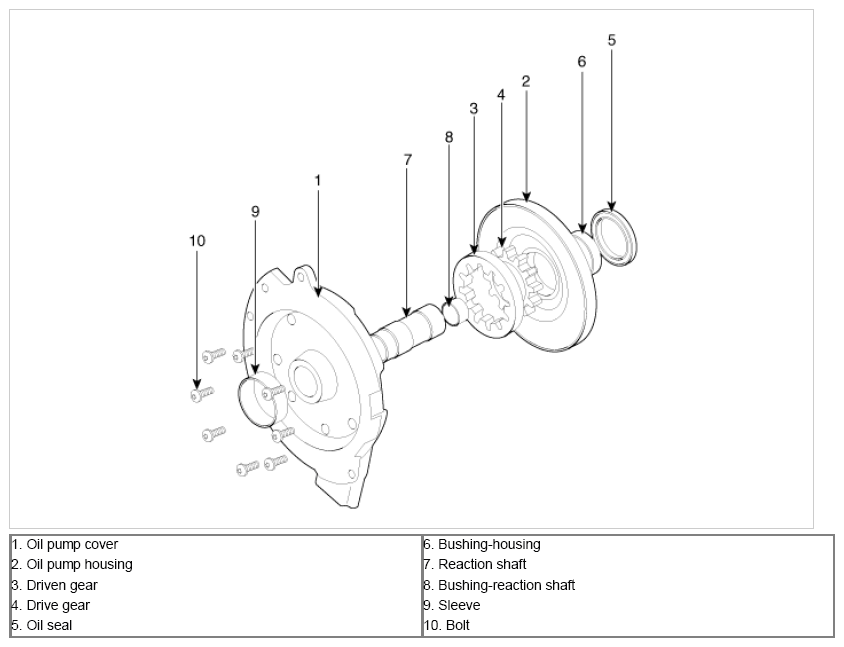

Fig 1: Oil Pump Components Location
G09886178Courtesy of HYUNDAI MOTOR AMERICA
