Inhibitor Switch
›
Repair procedures
›
Inspection
›
Inspection flow
Inspection flow

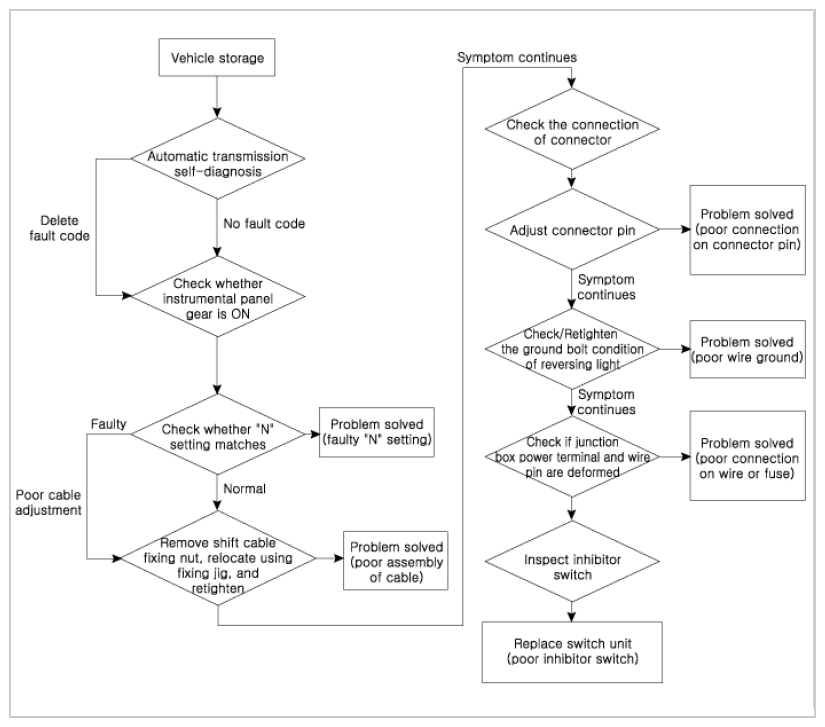

Fig 1: Inspection Flow Diagram
Courtesy of HYUNDAI MOTOR AMERICA
