Repair procedures: Removal

Disconnect the negative (-) battery cable.
Remove the air cleaner assembly and air duct.
(Refer to "AIR CLEANER ")

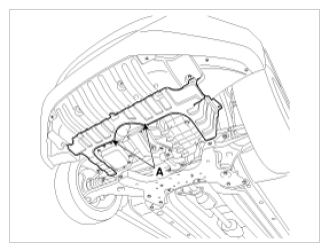

Remove the under cover (A).
Tightening torque: 6.9 ~ 10.8 N.m (0.7 ~ 1.1 kgf.m, 5.1 ~ 8.0 lb-ft)

Fig 1: Identifying Under Cover
Courtesy of HYUNDAI MOTOR AMERICA
Replace new gasket and the plug after draining the automatic transaxle fluid by removing the drain plug.
(Refer to "FLUID ")

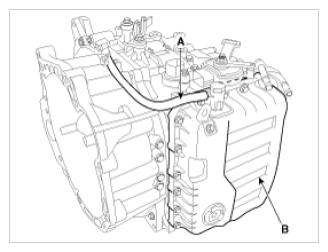

Remove the air breeder hose (A).
Remove the valve body cover (B).
Tightening torque: 13.7 ~ 15.7 N.m (1.4 ~ 1.6 kgf.m, 10.1 ~ 11.6 lb-ft)

Fig 2: Identifying Air Breeder Hose And Valve Body Cover
Courtesy of HYUNDAI MOTOR AMERICA

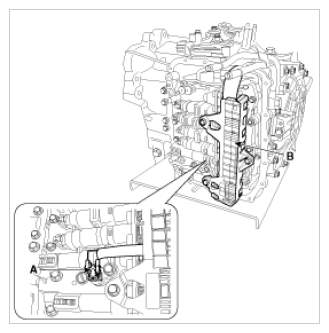

Remove the bolt (3ea) after disconnecting the solenoid valve connector (B) and the oil temperature sensor connector (A).
Tightening torque: 9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

Fig 3: Identifying Solenoid Valve And Oil Temperature Sensor Connector
Courtesy of HYUNDAI MOTOR AMERICA

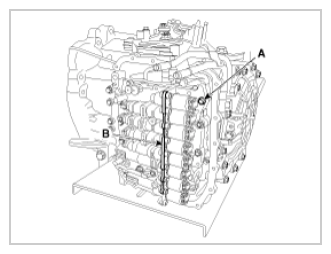

Remove the solenoid valve support bracket (B) and the valve body mounting bolt (A-1ea).
Tightening torque: 9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

Fig 4: Identifying Solenoid Valve Support Bracket And Valve Body Mounting Bolts
Courtesy of HYUNDAI MOTOR AMERICA

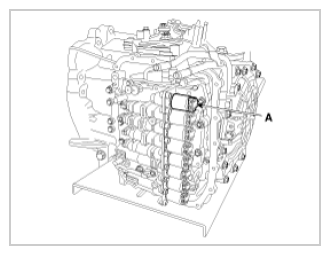

Remove the torque converter control solenoid valve (A).

Fig 5: Identifying Torque Converter Control Solenoid Valve
Courtesy of HYUNDAI MOTOR AMERICA
