Variant coding

Connect GDS to Data Link Connector. (DLC).
IG "ON", and then select the model, system (ESP (ESC))
Click the Vehicle S/W Management button. (Fig 1)
Using GDS, Perform Variant Coding. (Fig 2)
IG "OFF" and wait for about 10 seconds, and then IG "ON".
IG "OFF" and wait for about 10 seconds again, and then, IG "ON.
Go to "COMPONENT INSPECTION " procedure.

Fig 1: Display - Variant Coding Screen (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

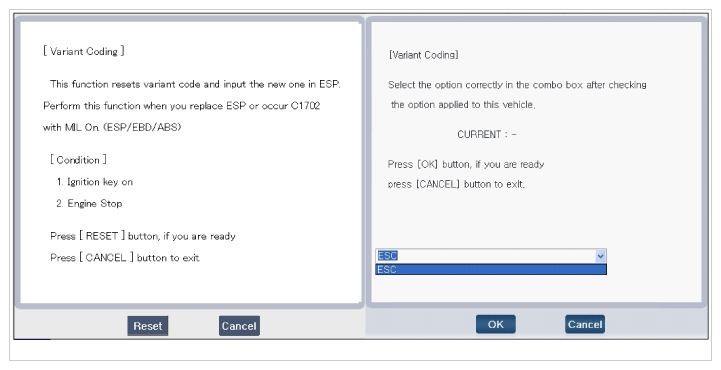

Fig 2: Display - Variant Coding Screen (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
