Components And Components Location: Components

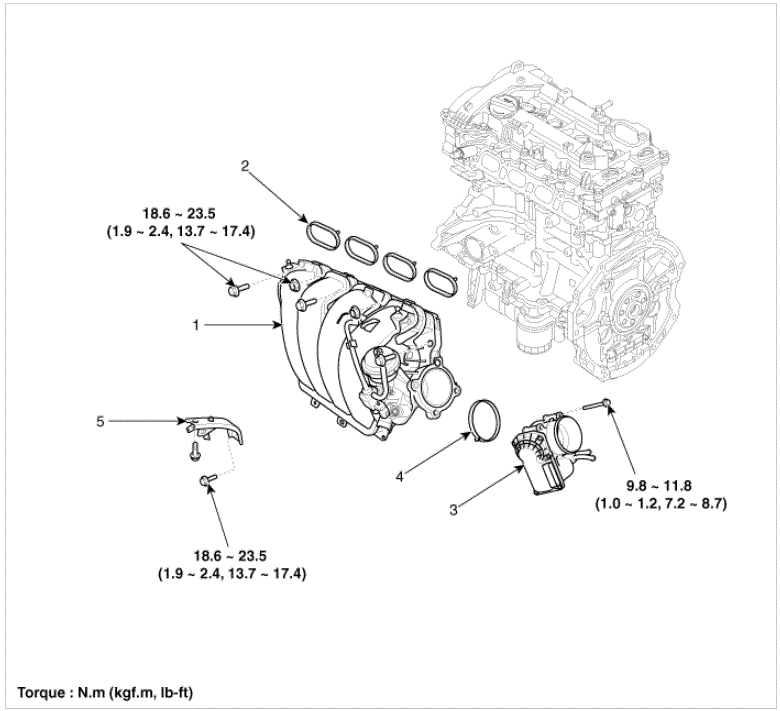

Fig 1: Intake Manifold Replacement Components With Torque Specifications

Courtesy of HYUNDAI MOTOR AMERICA

1. Intake manifold assembly	4. O-ring
2. Intake manifold gasket	5. Intake manifold stay
3. Electronic throttle body
