Components and Components Location: Components

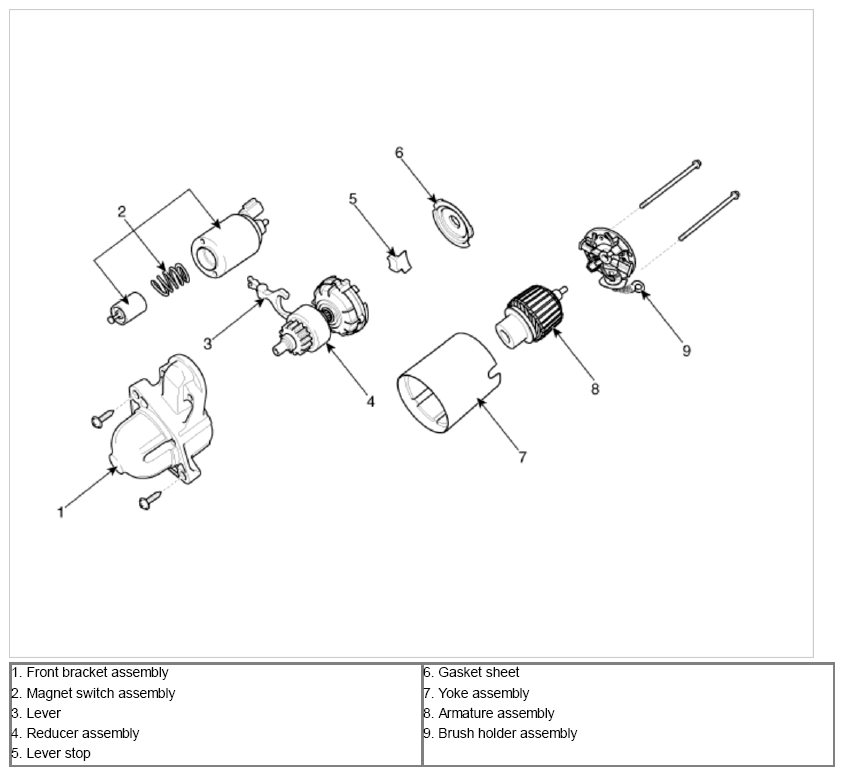

Fig 1: Identifying Starter Components Location
G09885765Courtesy of HYUNDAI MOTOR AMERICA
