Repair procedures: Removal

Remove the floor Interior console assembly.
(Refer to "FLOOR CONSOLE ")

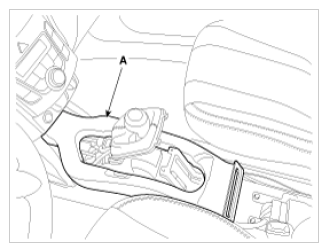

Remove the air duct (A).

Fig 1: Identifying Floor Interior Console Assembly Air Duct
Courtesy of HYUNDAI MOTOR AMERICA

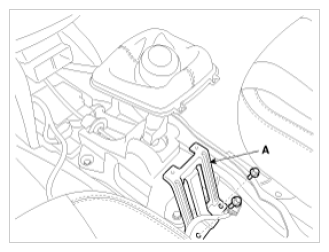

Remove the cover (A).

Fig 2: Identifying Floor Interior Console Assembly Cover
Courtesy of HYUNDAI MOTOR AMERICA

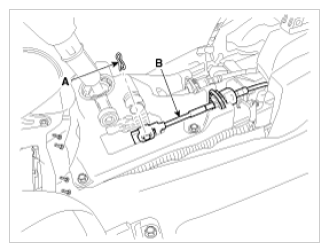

Remove the select cable (B) by removing the snap pin (A).

Fig 3: Identifying Select Cable And Snap Pin
Courtesy of HYUNDAI MOTOR AMERICA

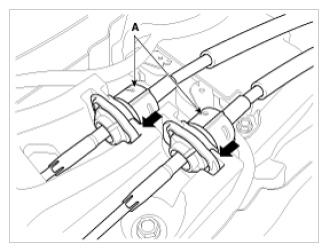

Remove the shift cable (B) after removing the clip (A).

Fig 4: Removing Shift Cable
Courtesy of HYUNDAI MOTOR AMERICA

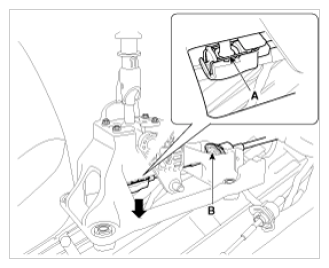

Remove the cable guide (A) from lever assembly after pulling in the direction of the arrow.

Fig 5: Removing Cable Guide
Courtesy of HYUNDAI MOTOR AMERICA

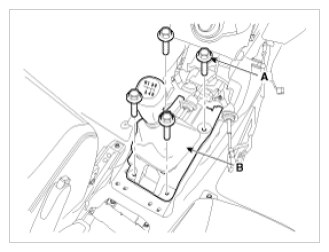

Remove the shift lever assembly (B) by removing the bolts (A-4ea).
Tightening torque:

8.8 ~ 13.7 N.m (0.9 ~ 1.4 kgf.m, 6.5 ~ 10.1 lb-ft)

Fig 6: Identifying Shift Lever Assembly And Screws
Courtesy of HYUNDAI MOTOR AMERICA

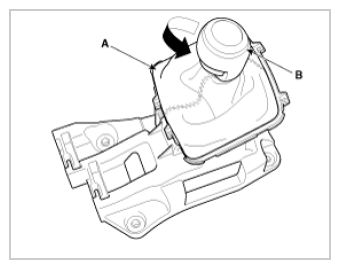

Remove the boots (A) and knob (B) from the lever assembly.
NOTE: Rotating counter-clockwise shift lever knob (B).

Fig 7: Removing Counter-Clockwise Shift Lever Knob
Courtesy of HYUNDAI MOTOR AMERICA

Fig 8: Identifying Counter-Clockwise Shift Lever Knob
Courtesy of HYUNDAI MOTOR AMERICA
