Circuit Diagram: 2013

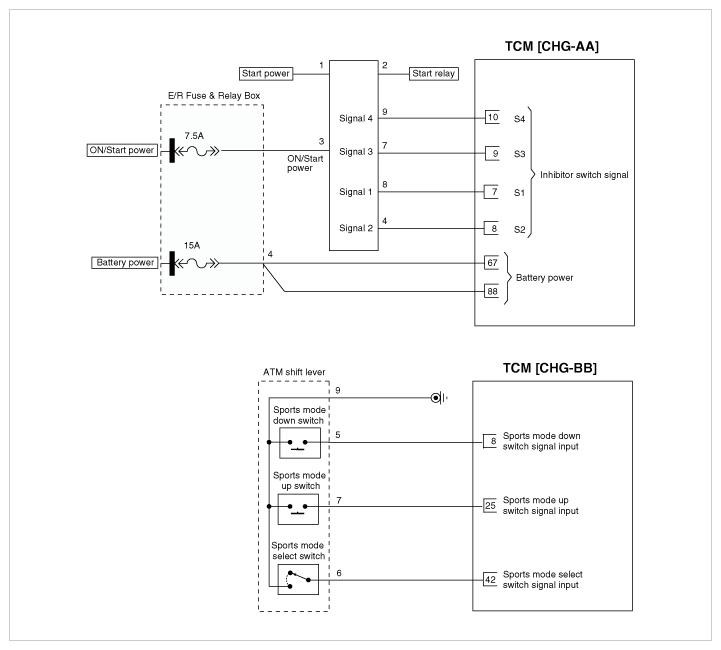

Fig 1: TCM (CHG-AA) Circuit Diagram
G10243306Courtesy of HYUNDAI MOTOR AMERICA

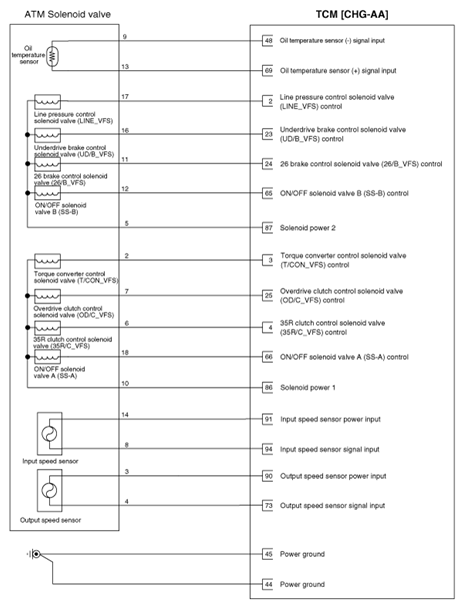

Fig 2: TCM (CHG-BB) Circuit Diagram
G10243307Courtesy of HYUNDAI MOTOR AMERICA
