Home › Hyundai › 2014 › Elantra SE, Standard Trans › Repair and Diagnosis › Engine Mechanical › Engine Lubrication System › Oil Pump › Components and Components Location › Components

Components and Components Location: Components

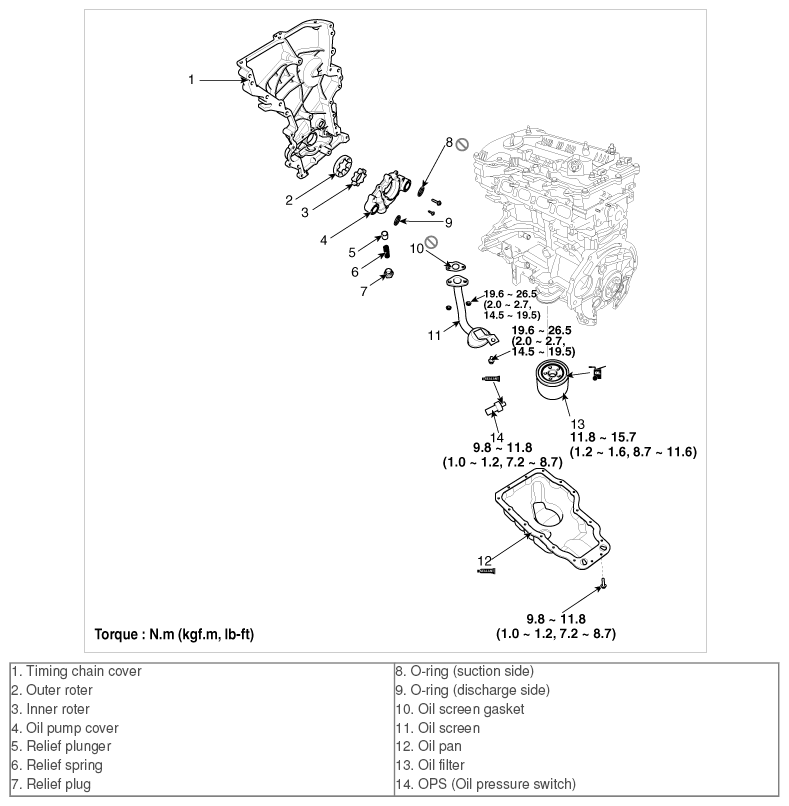

Fig 1: Oil Pump Components And Locations With Torque Specifications
G10234307Courtesy of HYUNDAI MOTOR AMERICA
