FOB Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IGN ON, select the "FOB KEY STATUS INFO".

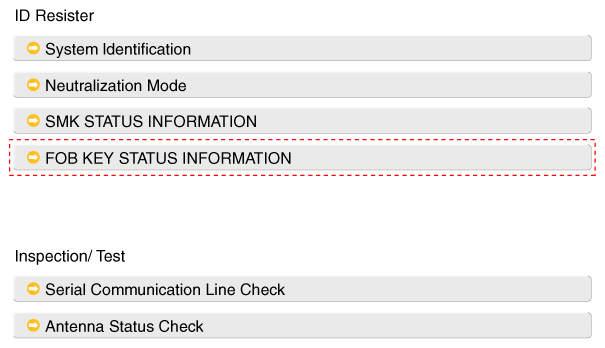

    Fig 1: Display - FOB Key Status Information Screen
    G09790966Courtesy of HYUNDAI MOTOR AMERICA

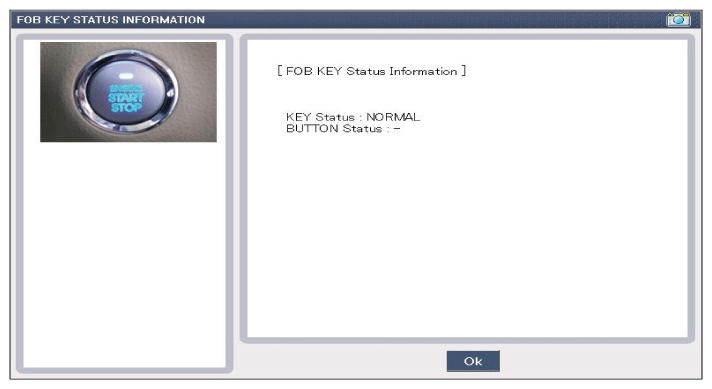

    Fig 2: Display - FOB Key Status Information Screen
    G09790967Courtesy of HYUNDAI MOTOR AMERICA
