Repair procedures: Inspection

The DDM inputs can be checked using the GDS.
To check the input value of door lock switch, select option "IPM".
Select option "DDM (Driver Door Module)".
Select option "Input/Output monitoring".

Fig 1: Display - Current Data Screen
Courtesy of HYUNDAI MOTOR AMERICA
To check the input value of door lock switch in force mode, select option "ACTUATION TEST".

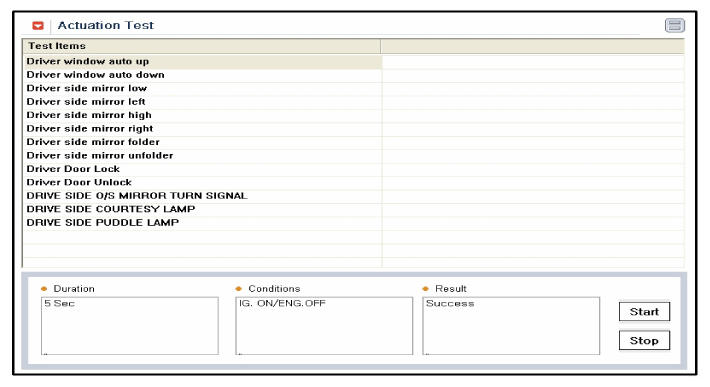

Fig 2: Display - Actuation Test Screen
Courtesy of HYUNDAI MOTOR AMERICA
