Home › Hyundai › 2014 › Equus Signature › Repair and Diagnosis › Brakes › Traction Control › Electronic Stability Control (ESC) System › ESP Control Unit › Components and Components Location › Components › [Standard]

Components and Components Location: Components: [Standard]

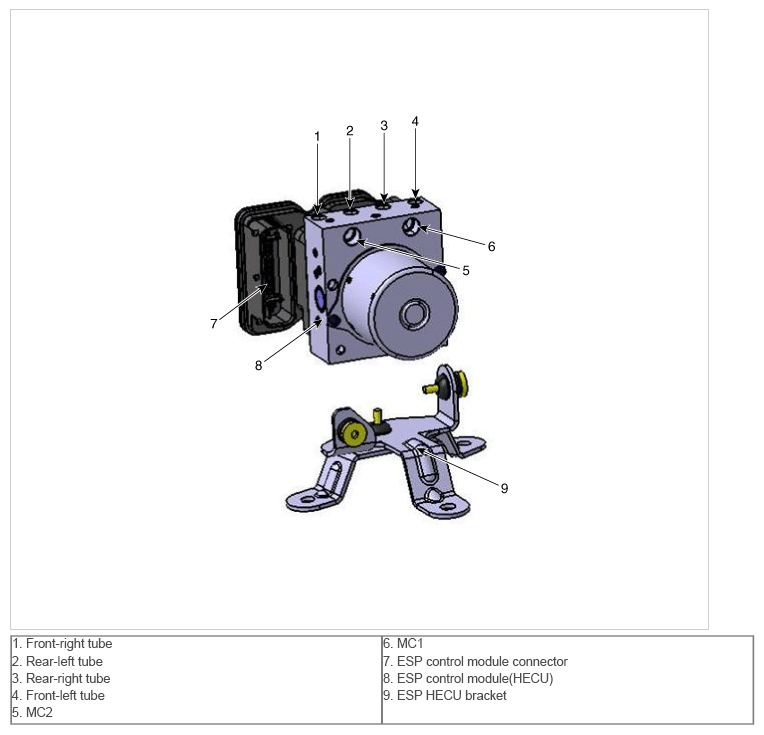

Fig 1: ESP Control Unit Components Location - Standard
G09790319Courtesy of HYUNDAI MOTOR AMERICA
