Start Stop Button: Component

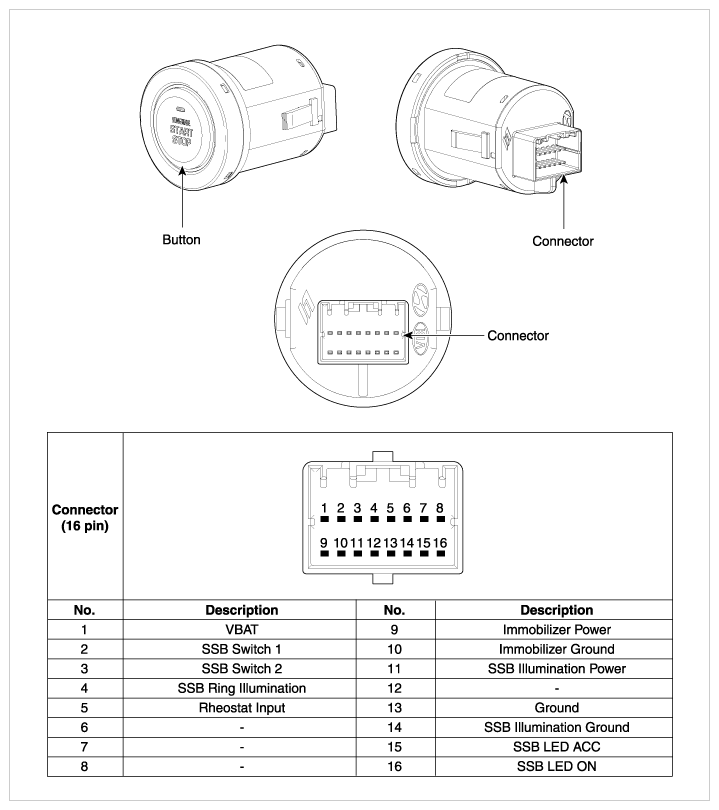

Fig 1: Identifying Start Stop Button Connector Pins
G09791486Courtesy of HYUNDAI MOTOR AMERICA
