Components and Components Location: Components

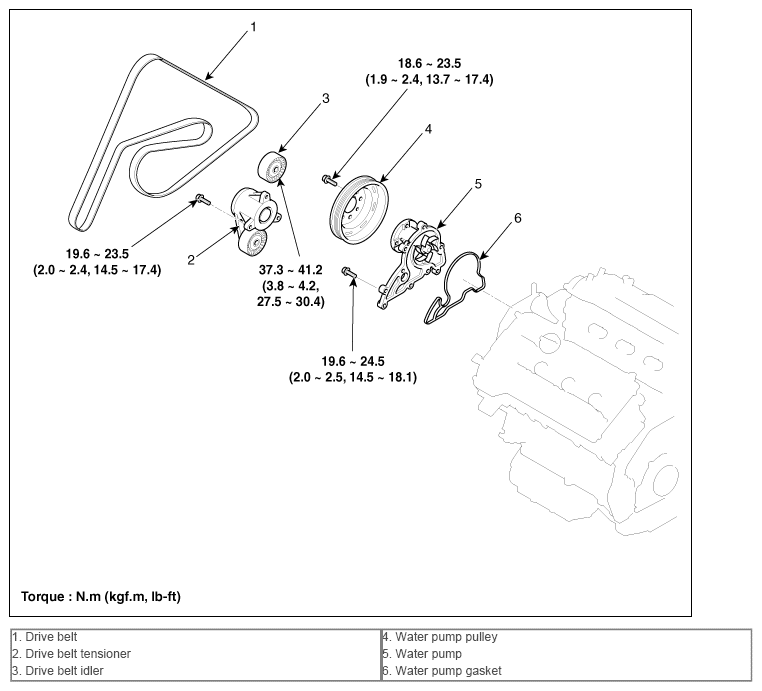

Fig 1: Water Pump Replacement Components With Torque Specifications
G09789062Courtesy of HYUNDAI MOTOR AMERICA
