Components and Components Location: Components

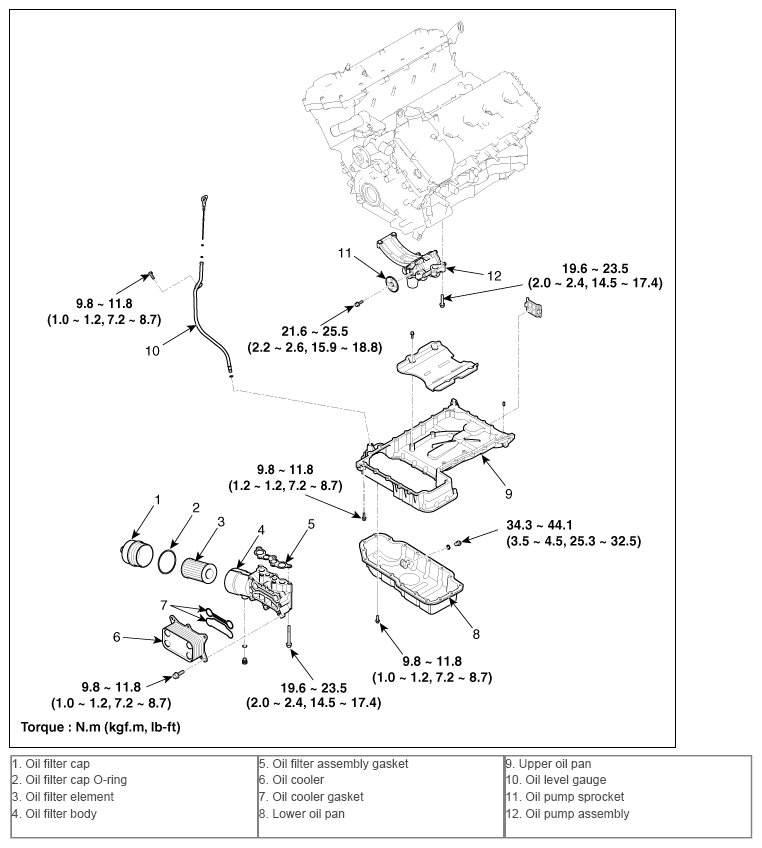

Fig 1: Oil Pump Replacement Components With Torque Specifications
G09789081Courtesy of HYUNDAI MOTOR AMERICA
