Components and Components Location: Components

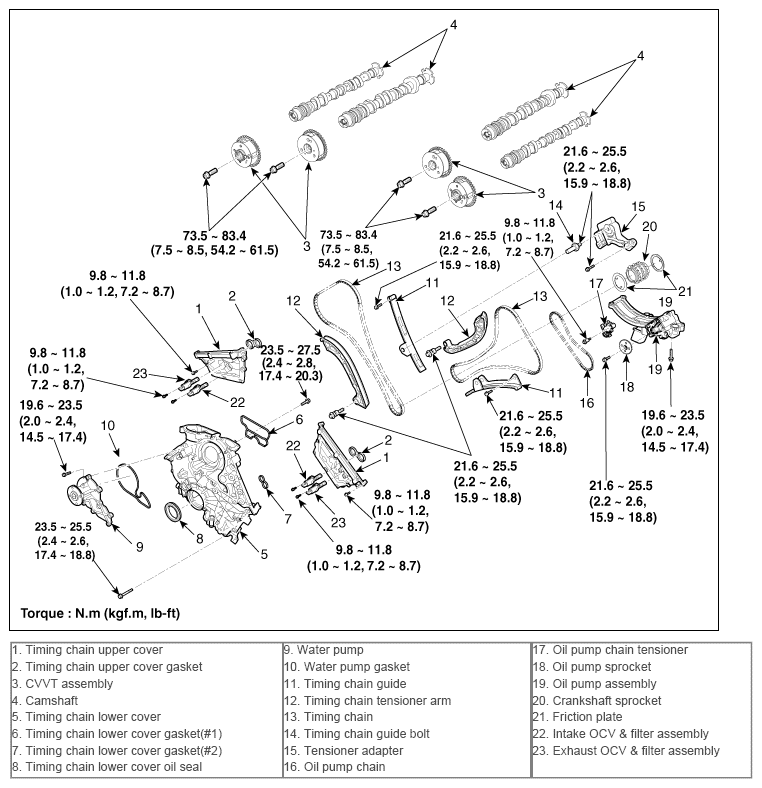

Fig 1: Timing Chain Components Location With Torque Specifications
G09788749Courtesy of HYUNDAI MOTOR AMERICA
