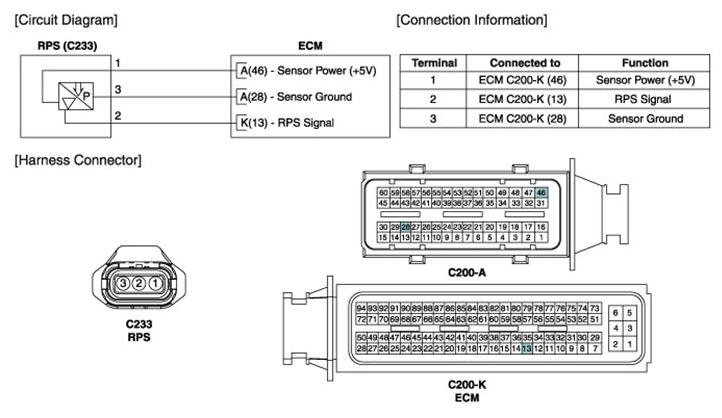

Home › Hyundai › 2014 › Equus Signature › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System › Rail Pressure Sensor (RPS) › Schematic Diagrams › Circuit Diagram
