Signal Waveform & Data

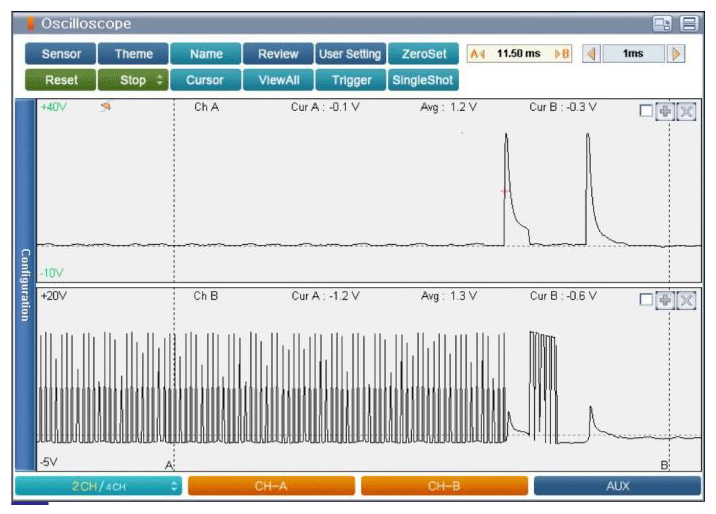

Fig 1: Display - Normal Waveform Of FPR (B2) At Idle Screen
G09793115Courtesy of HYUNDAI MOTOR AMERICA

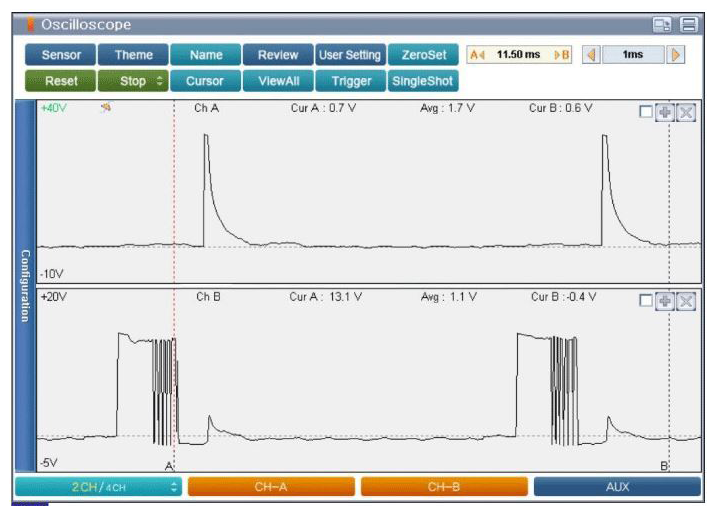

Fig 2: Display - Normal Waveform Of FPR (B2) At Acceleration And Deceleration Screen
G09793116Courtesy of HYUNDAI MOTOR AMERICA
