Removal And Installation: Notes

WARNING: This page is about a different car, the 2014 Mitsubishi Mirage. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: When the engine assembly is replaced, initialize the learned value using scan tool (M.U.T.-III) (Refer to INITIALIZATION PROCEDURE FOR LEARNING VALUE IN MFI ENGINE ).

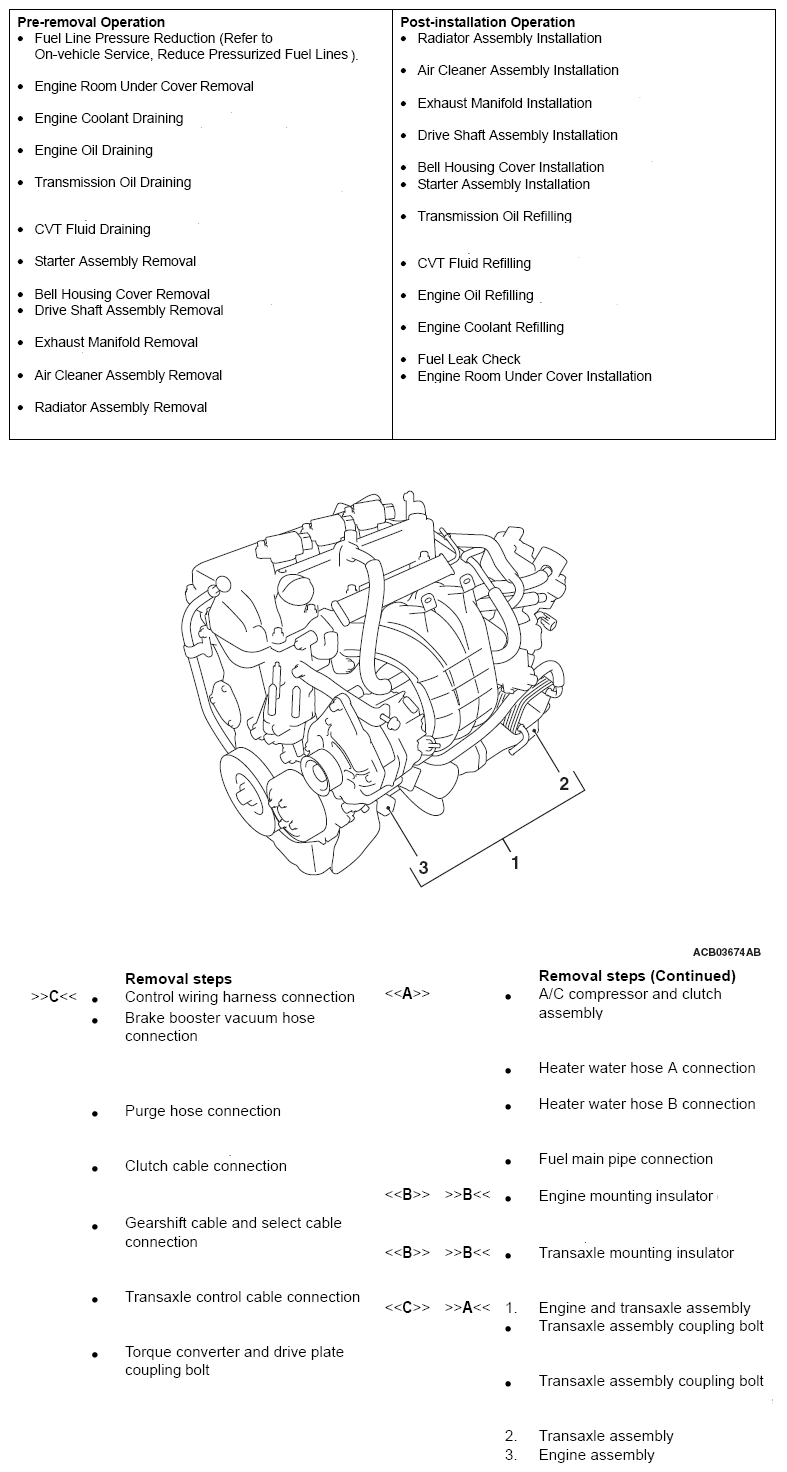

Fig 1: Identifying Engine And Transaxle Assembly
G09628281Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
