Repair Procedures: Inspection

  1. Check signal waveform of middle speed sensor using the GDS.

    Specification:  Refer to Fig 1 .

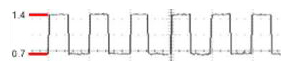

    Fig 1: Middle Speed Sensor Signal Waveform
    G09789601Courtesy of HYUNDAI MOTOR AMERICA
