Components and Components Location: Component

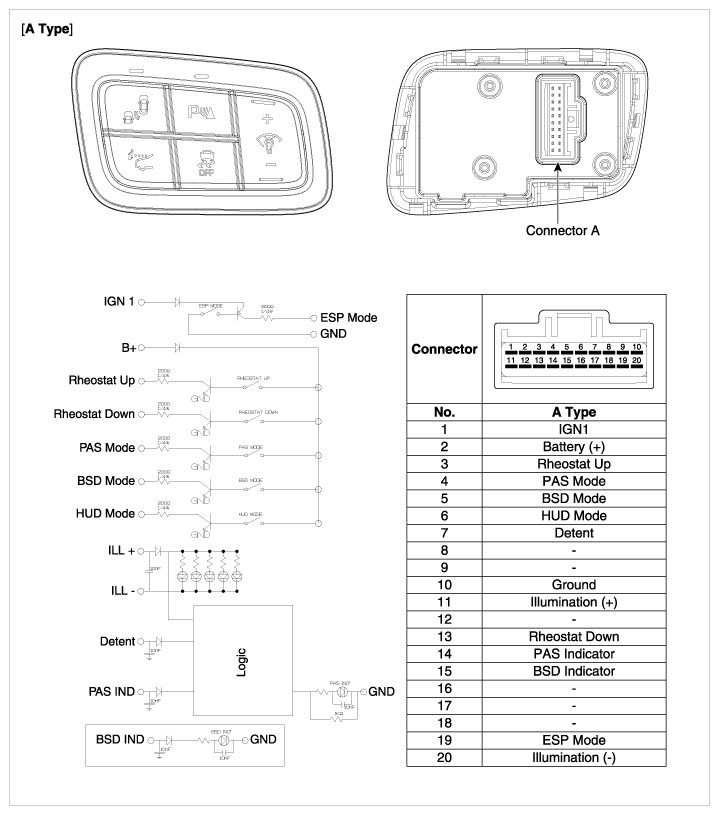

Fig 1: Blind Spot Detection Switch Circuit Diagram & Connector End View (Type A)
G09791589Courtesy of HYUNDAI MOTOR AMERICA

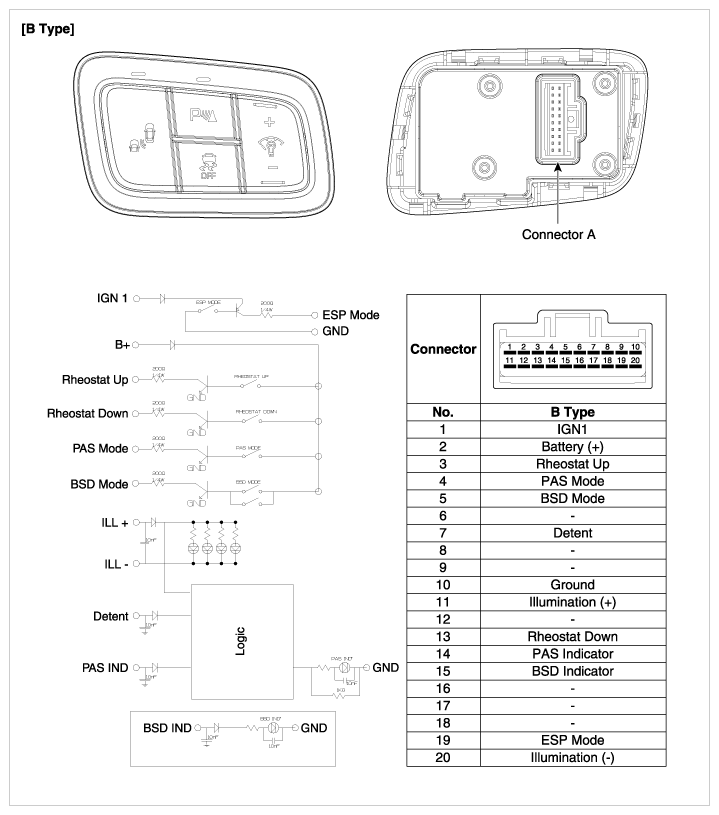

Fig 2: Blind Spot Detection Switch Circuit Diagram & Connector End View (Type B)
G09791590Courtesy of HYUNDAI MOTOR AMERICA
