Components and Components Location: Components

Fig 1: Pantoscopic Camera Components Location (Front)

Courtesy of HYUNDAI MOTOR AMERICA

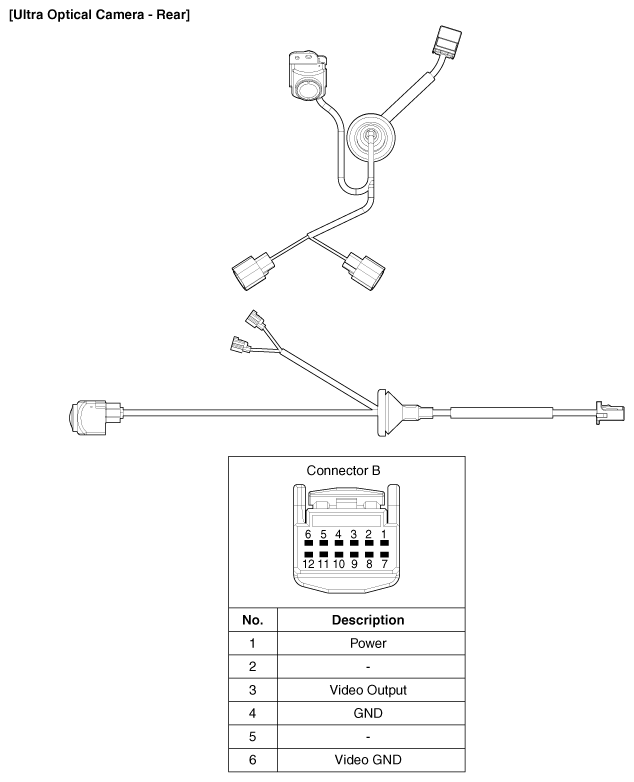

Fig 2: Pantoscopic Camera Components Location (Rear)

Courtesy of HYUNDAI MOTOR AMERICA
