Components and Components Location: Components

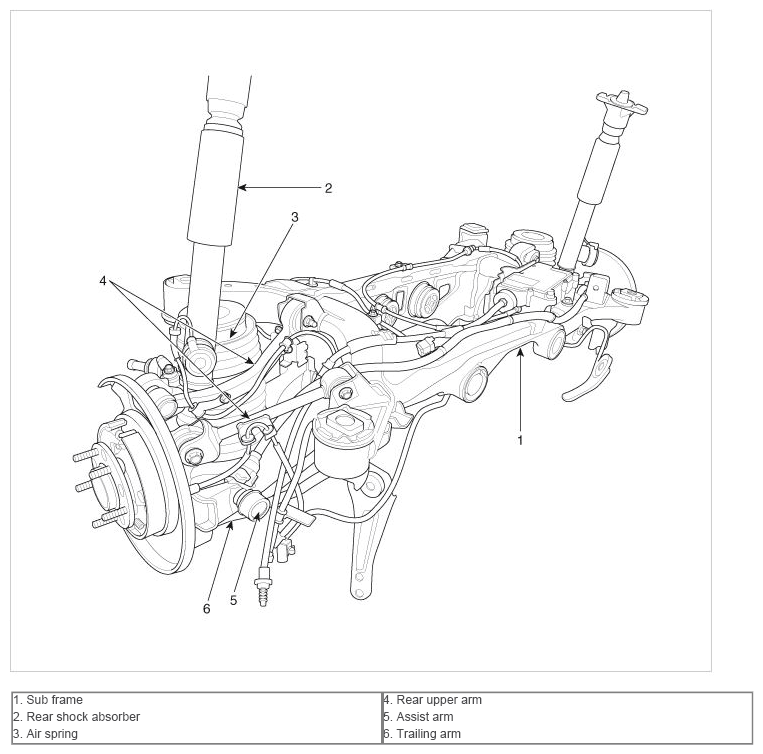

Fig 1: Rear Variable Damper Components Location
G09789887Courtesy of HYUNDAI MOTOR AMERICA
