Components and Components Location: Components

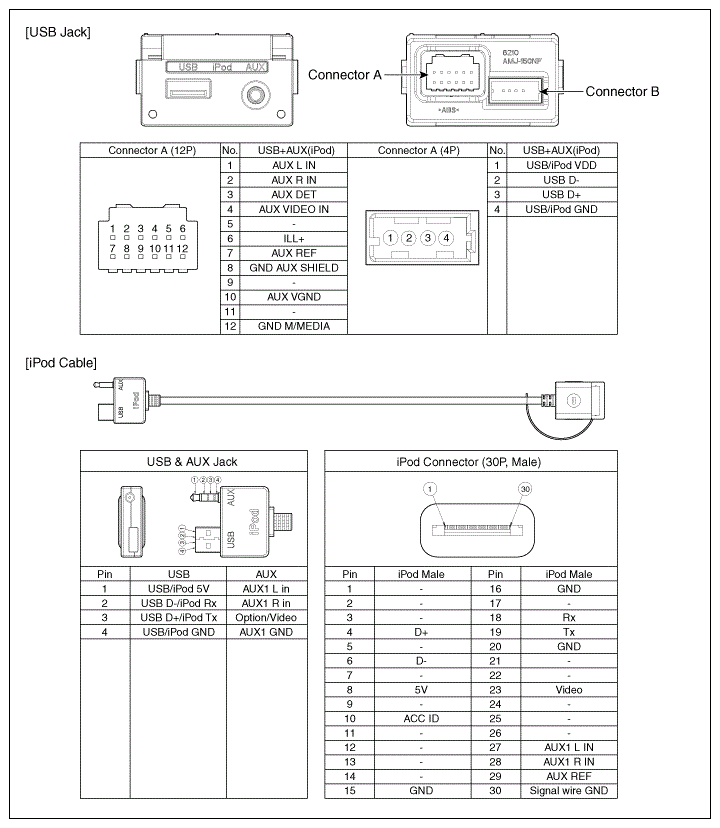

Fig 1: Identifying Multimedia Jack And Connectors
G08853315Courtesy of HYUNDAI MOTOR AMERICA
