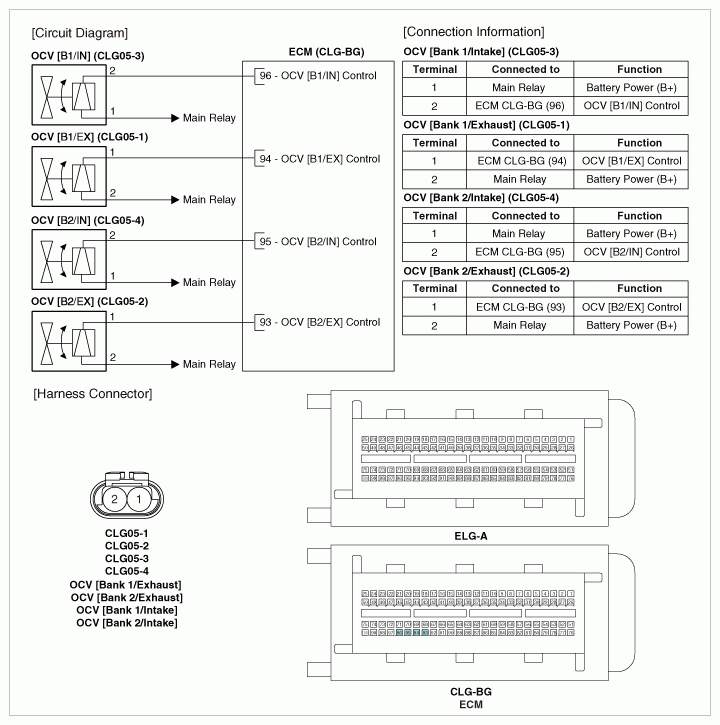

Home › Hyundai › 2014 › Genesis 3.8 › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 3.8L › CVVT Oil Control Valve (OCV) › Schematic Diagrams › Circuit Diagram
