Circuit Diagram

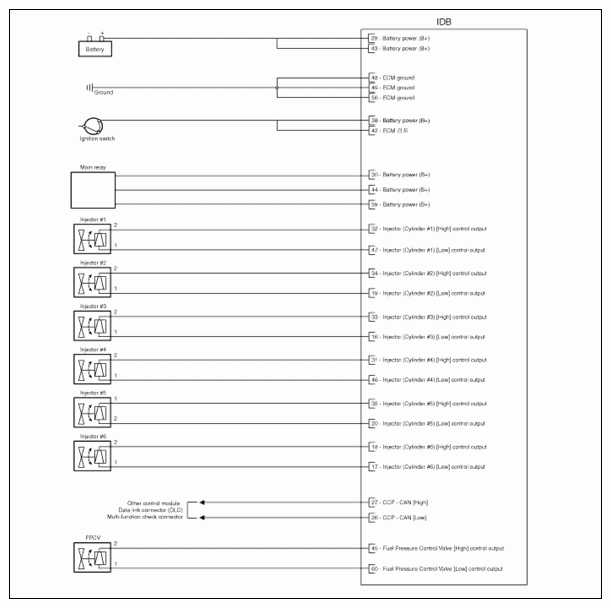

Fig 1: Injector Drive Box Connector Terminals - Circuit Diagram (1 Of 2)
G08834126Courtesy of HYUNDAI MOTOR AMERICA
Fig 2: Injector Drive Box Connector Terminals - Circuit Diagram (2 Of 2)
G08834127Courtesy of HYUNDAI MOTOR AMERICA
