Package Tray Trim Replacement

NOTE:

Put on gloves to protect your hands.
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Take care not to bend or scratch the trim and panels.

Remove the rear seat assembly. (Refer to "REAR SEAT ")
Remove the front door scuff trim.
Remove the cap (B).
After loosening the mounting bolt, remove the rear pillar trim (A).

Fig 1: Identifying Rear Pillar Trim
Courtesy of HYUNDAI MOTOR CO.

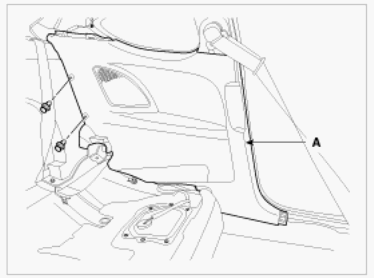

Remove the mounting clips and then center pillar lower trim (A).

Fig 2: Identifying Center Pillar Lower Trim
Courtesy of HYUNDAI MOTOR CO.
After loosening the mounting screws and bolts, then remove the luggage partition tray trim (A).

Fig 3: Identifying Luggage Side Trim
Courtesy of HYUNDAI MOTOR CO.
After loosening the mounting bolt, remove the rear seat belt lower anchor (A).

Fig 4: Identifying Seat Belt Lower Anchor
Courtesy of HYUNDAI MOTOR CO.
Remove the seat belt upper Anchor cover (A).

Fig 5: Identifying Seat Belt Cover
Courtesy of HYUNDAI MOTOR CO.

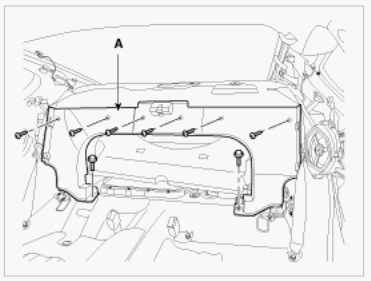

Remove the package tray trim (A).

Fig 6: Identifying Package Tray Trim
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.

NOTE:
