Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the console assembly (A).

    (Refer to INTERIOR )

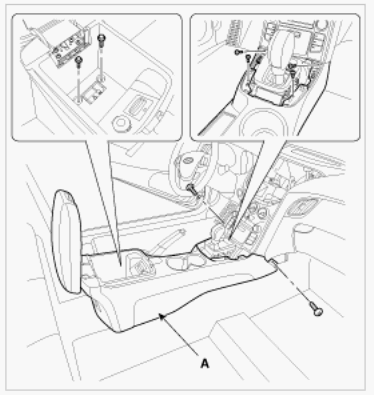

    Fig 1: Console Assembly
    G00537466Courtesy of HYUNDAI MOTOR CO.
  3. Disconnect the connector and remove the fob holder (A) after loosening the mounting screws.

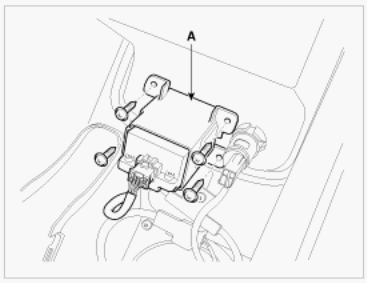

    Fig 2: Fob Holder & Mounting Screws
    G00537467Courtesy of HYUNDAI MOTOR CO.
