Circuit Diagram

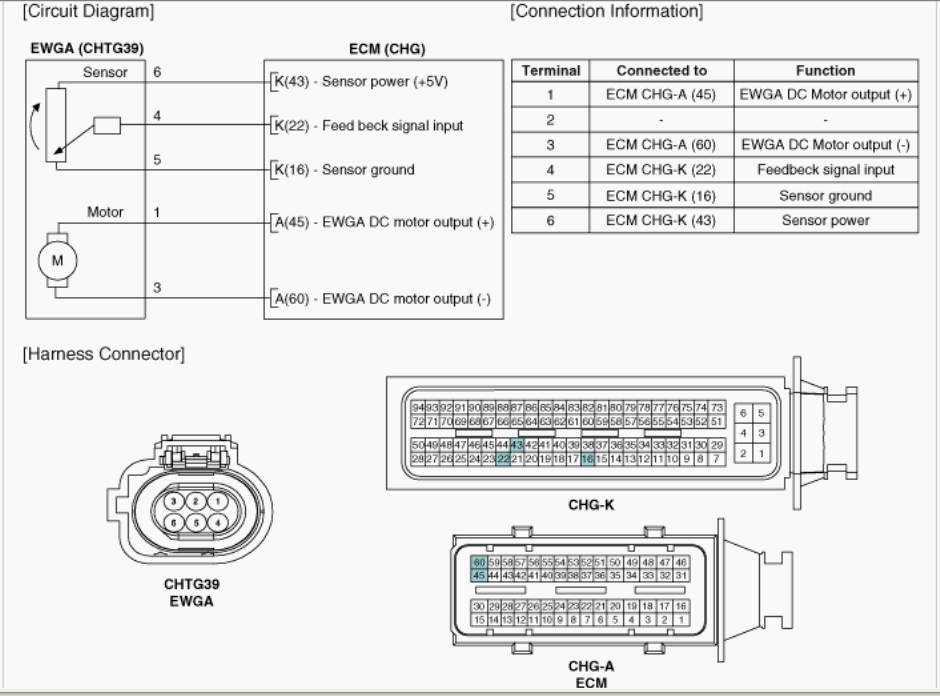

Fig 1: Electric WGT Control Actuator Circuit Diagram
G00540664Courtesy of HYUNDAI MOTOR CO.

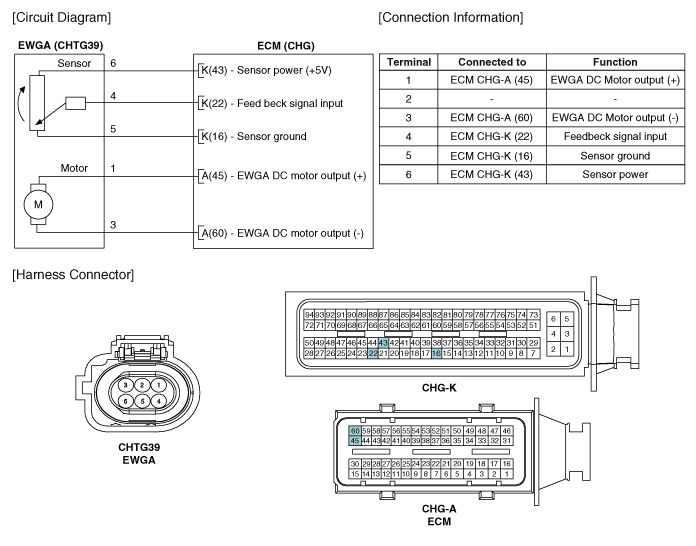

Fig 1: Electric WGT Control Actuator - Circuit Diagram
G00545441Courtesy of HYUNDAI MOTOR CO.
