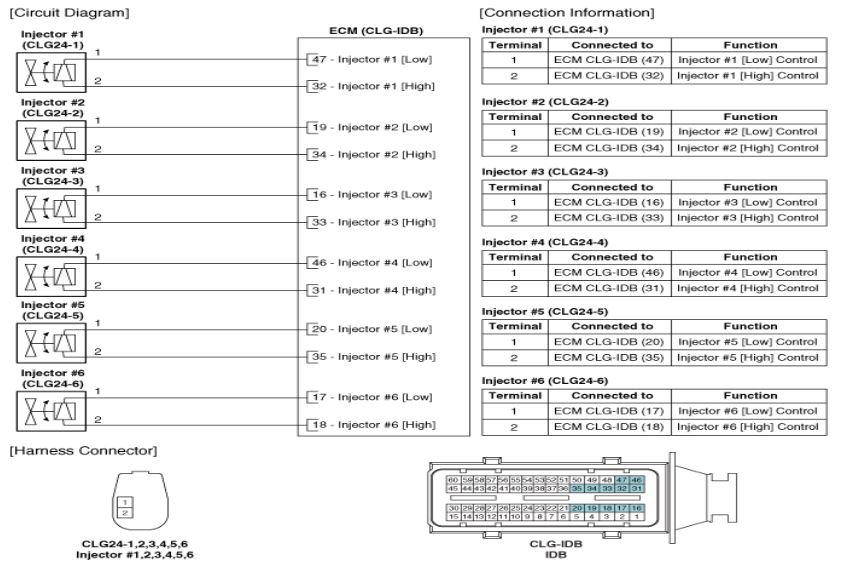

Home › Hyundai › 2014 › Genesis Coupe 3.8 R-Spec, Standard Trans › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 3.8L › Injector › Schematic Diagrams › Circuit Diagram
