Repair Procedures: Removal
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.

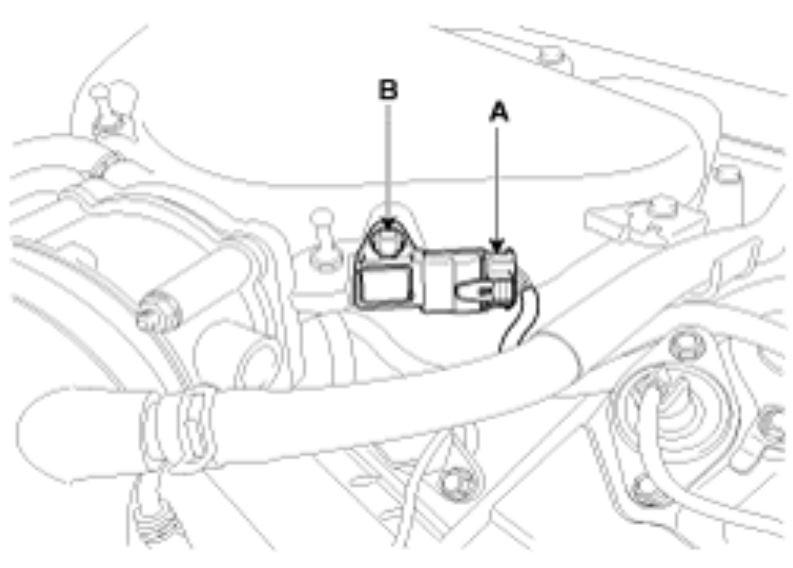

- Disconnect the manifold absolute pressure sensor connector (A).
- Remove the installation bolts (B), and then vertically remove the sensor from the surge tank.
