Repair Procedures: Removal
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Remove the air cleaner assembly (Refer to INTAKE AND EXHAUST SYSTEM (ENGINE MECHANICAL) - 3.8L ).

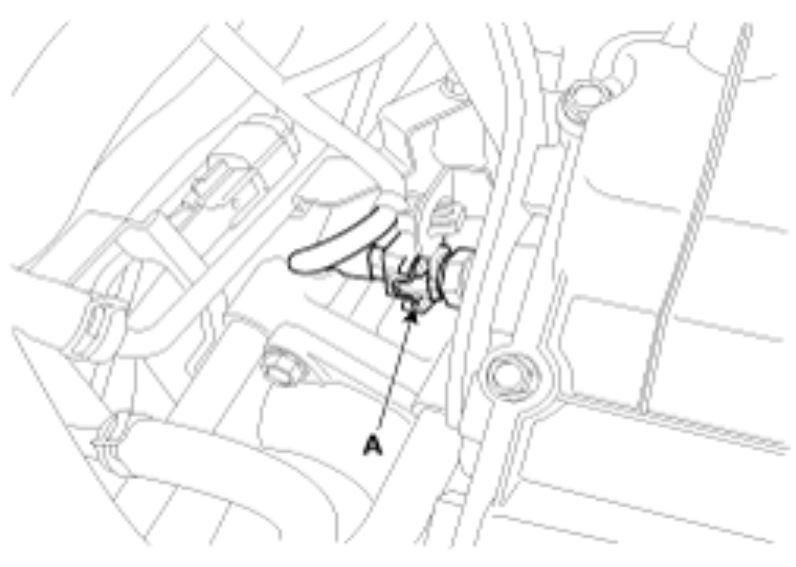

- Disconnect the connector (A), and then remove the CVVT oil temperature sensor (B).
