Assist Power Window Switch

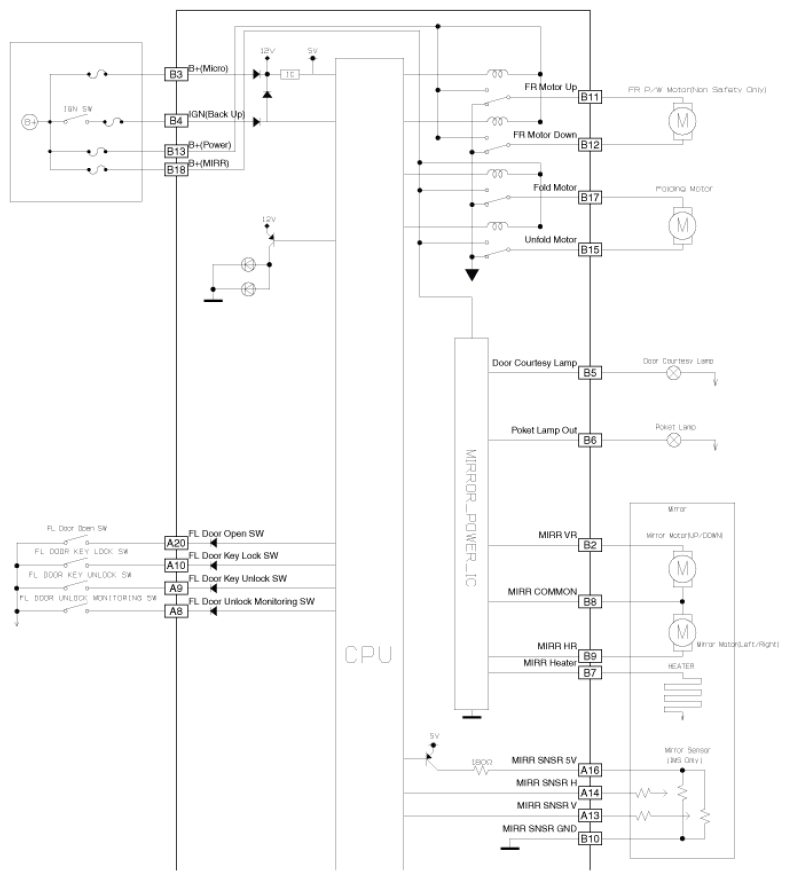

Fig 1: Assist Power Window Switch - Circuit Diagram (1 Of 2)
G09268727Courtesy of HYUNDAI MOTOR AMERICA

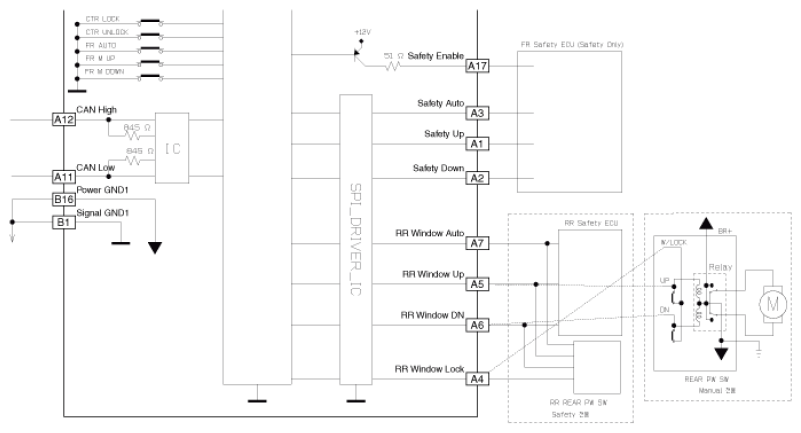

Fig 2: Assist Power Window Switch - Circuit Diagram (2 Of 2)
G09268728Courtesy of HYUNDAI MOTOR AMERICA
