Home › Hyundai › 2014 › Santa Fe GLS, AWD › Repair and Diagnosis › Engine Mechanical › Mechanical › Cylinder Block › Crankshaft › Components And Components Location › Components

Components And Components Location: Components

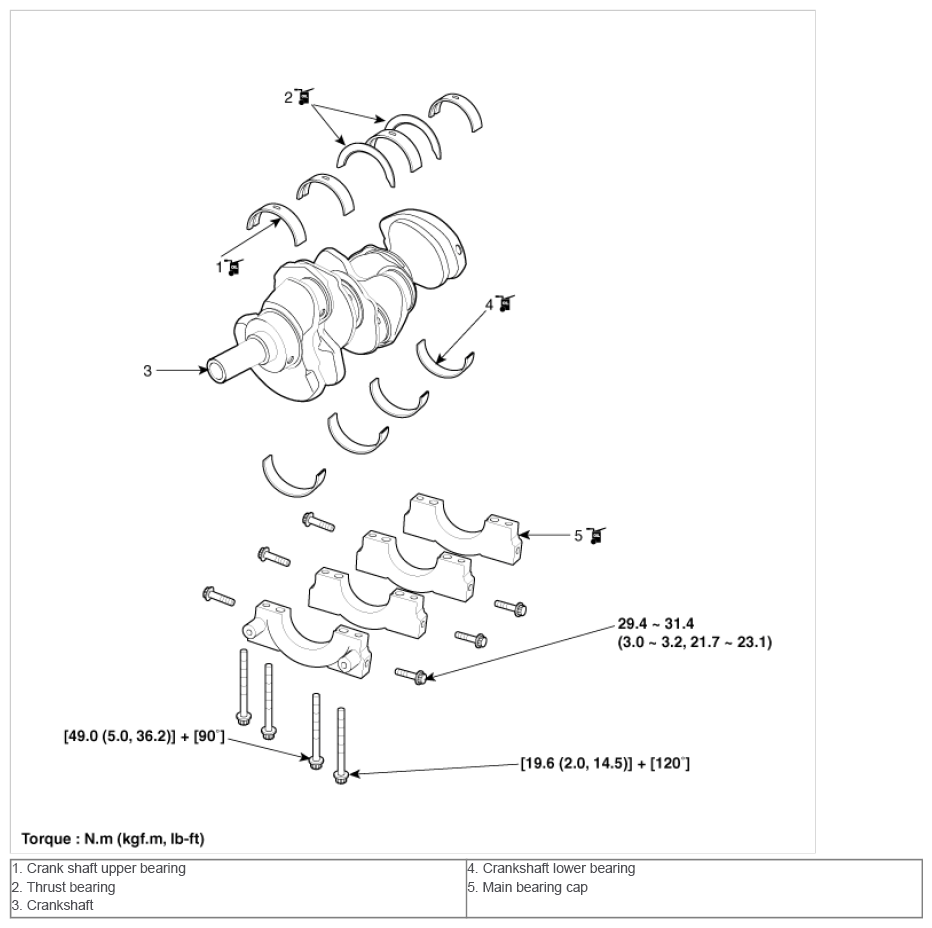

Fig 1: Crankshaft Replacement Components With Torque Specifications
G09270681Courtesy of HYUNDAI MOTOR AMERICA
