Components and Components Location: Components

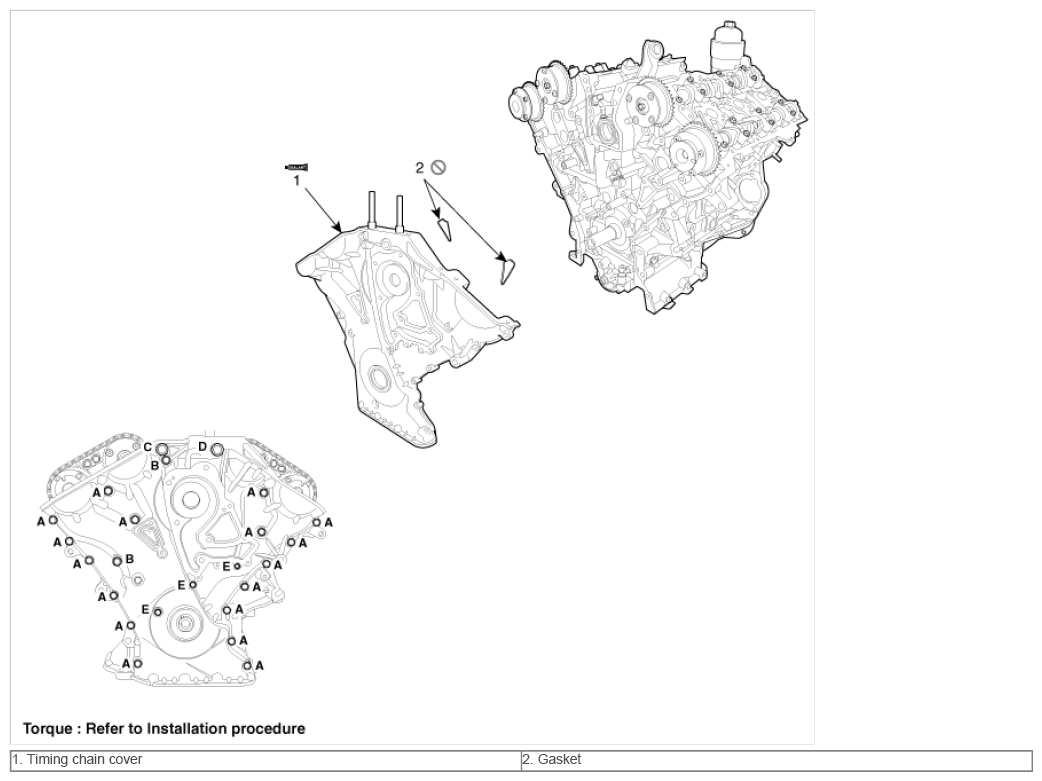

Fig 1: Identifying Timing Chain Cover And Gasket
G09267212Courtesy of HYUNDAI MOTOR AMERICA
