Repair Procedures: Removal

Turn the ignition switch OFF and disconnect the negative (-) battery cable.
Disconnect the accelerator position sensor connector (A).
Remove the installation nuts (C), the bolt (B) and then remove the accelerator pedal module.

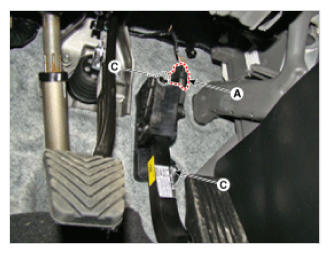

Fig 1: Identifying Accelerator Position Sensor Connector And Mounting Nut
Courtesy of HYUNDAI MOTOR AMERICA

Fig 2: Identifying Accelerator Position Sensor Connector Mounting Nut
Courtesy of HYUNDAI MOTOR AMERICA
