Components Location
Components Location

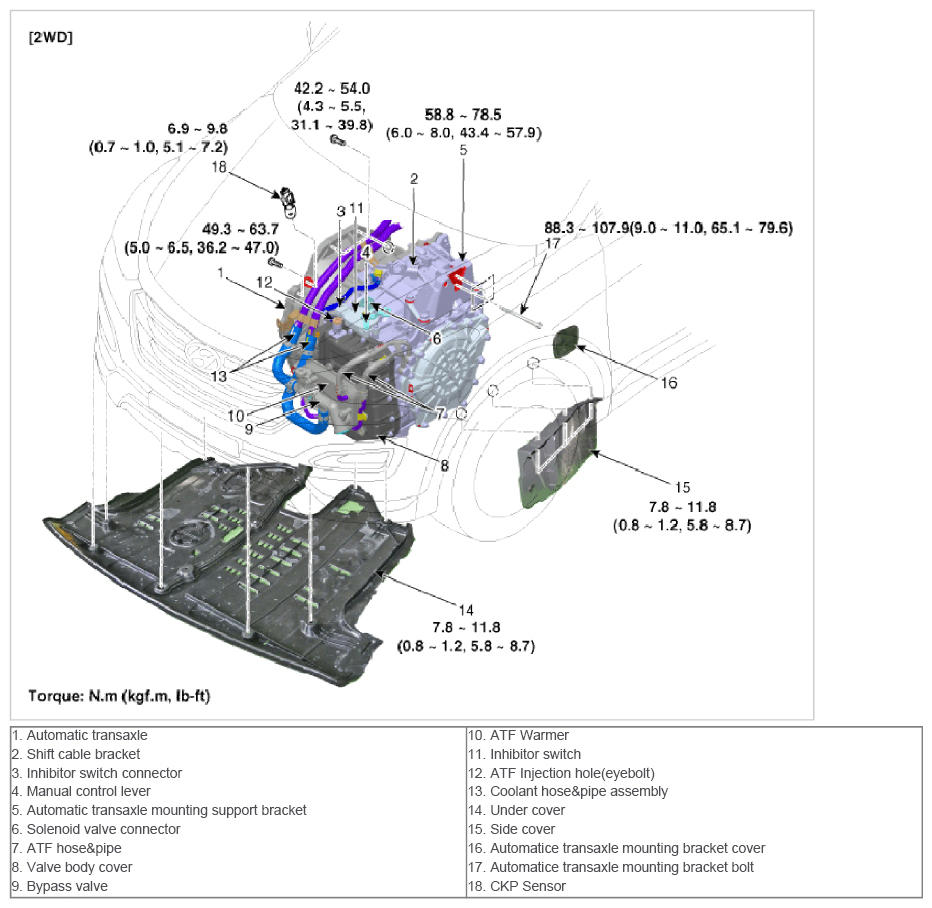

Fig 1: Automatic Transaxle Components Location With Torque Specifications (2WD)
Courtesy of HYUNDAI MOTOR AMERICA

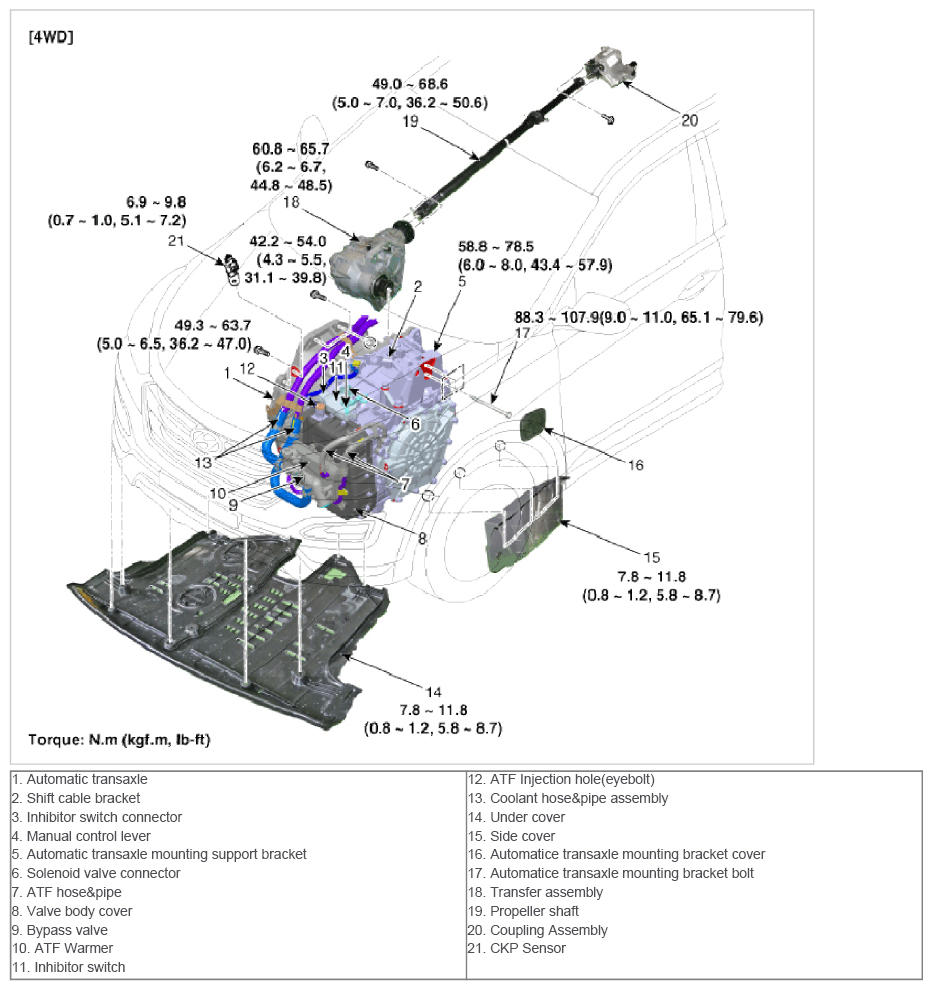

Fig 2: Automatic Transaxle Components Location With Torque Specifications (4WD)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
