Repair Procedures: Inspection: Notes

  1. Check for resistance between terminals in each switch position.

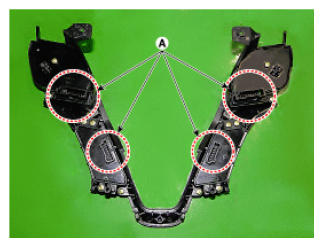

    Fig 1: Identifying Audio System Connectors Terminals
    G09268388Courtesy of HYUNDAI MOTOR AMERICA
