Components and Components Location: Component

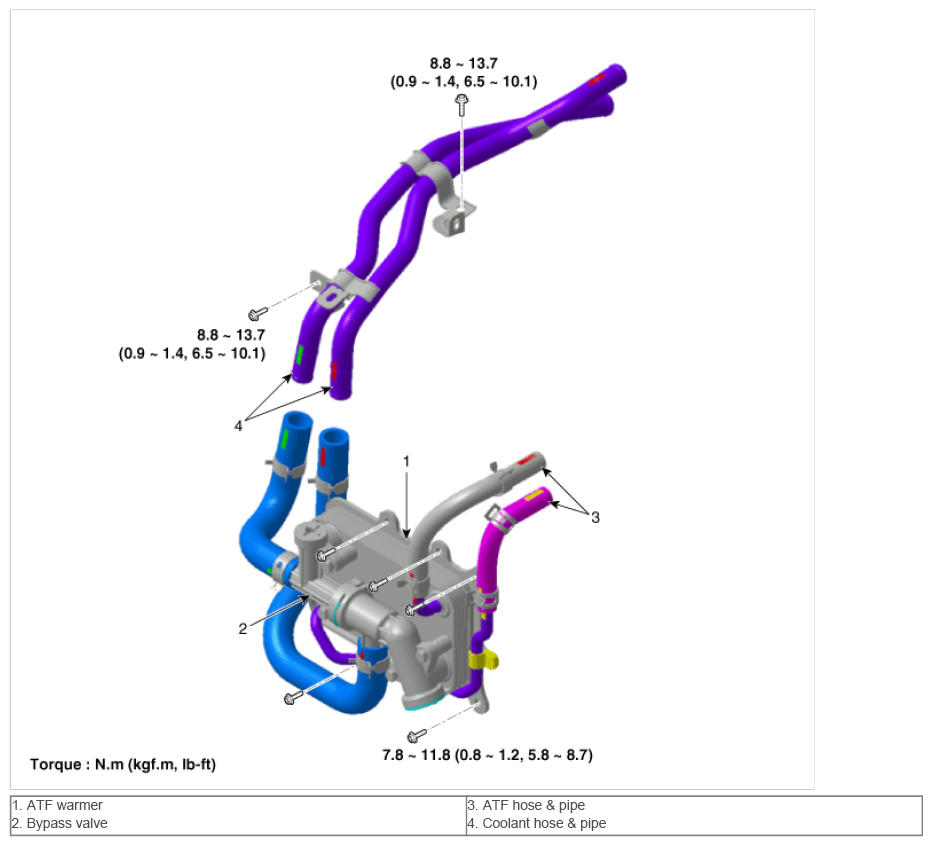

Fig 1: ATF Warmer, Bypass Valve, ATF Hose & Pipe And Coolant Hose & Pipe And Mounting Bolt With Torque Specifications
G09267618Courtesy of HYUNDAI MOTOR AMERICA
