Components and Components Location
›
Components
Components and Components Location: Components

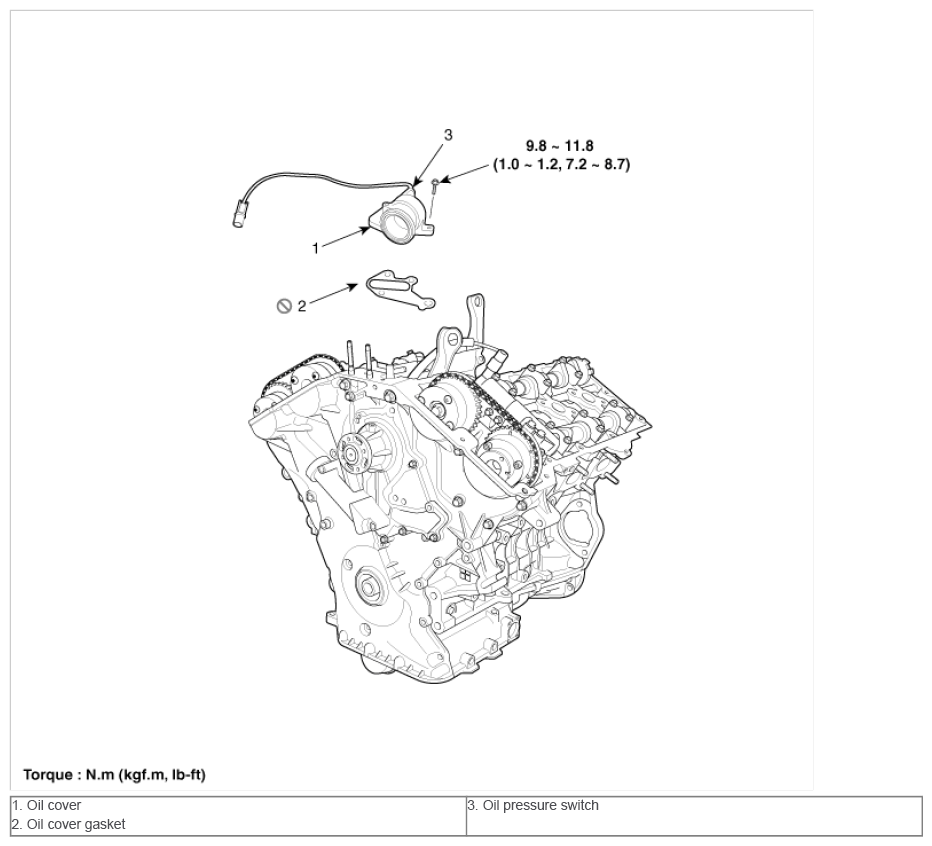

Fig 1: Oil Cover, Oil Cover Gasket, Oil Pressure Switch And Mounting Bolt Torque Specification
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
