Repair procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Disconnect the main absolute pressure sensor connector(A).
  3. Remove the installation bolts (B), and then remove the sensor from the surge tank.

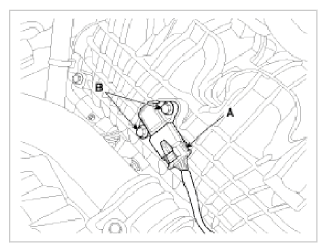

    Fig 1: Identifying Pressure Sensor Connector Bolts
    G09364981Courtesy of HYUNDAI MOTOR AMERICA
