Santa Fe Sport 2.0T, AWD
›
Repair and Diagnosis
›
Transmission
›
Transmission Control Systems
›
Automatic Transaxle Control System - 2.0L
›
Input Speed Sensor
›
Troubleshooting
›
Signal Waveform
Signal Waveform

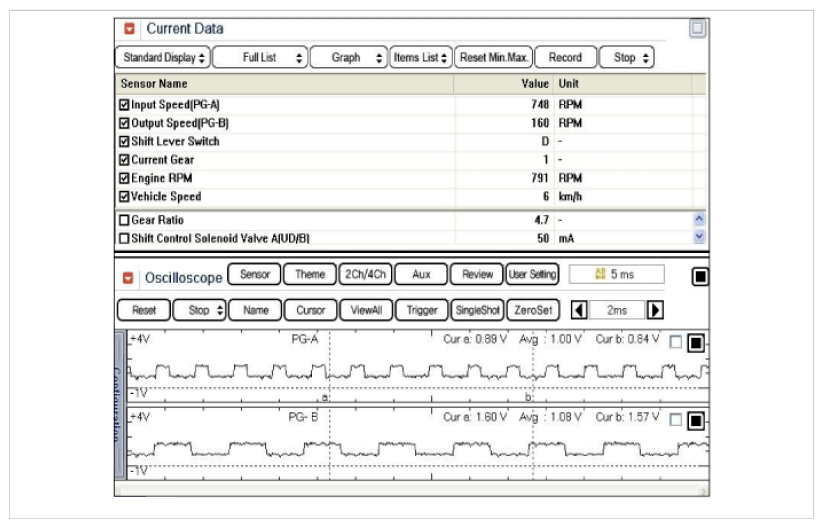

Fig 1: Display - Vehicle Speed Current Data Screen
Courtesy of HYUNDAI MOTOR AMERICA

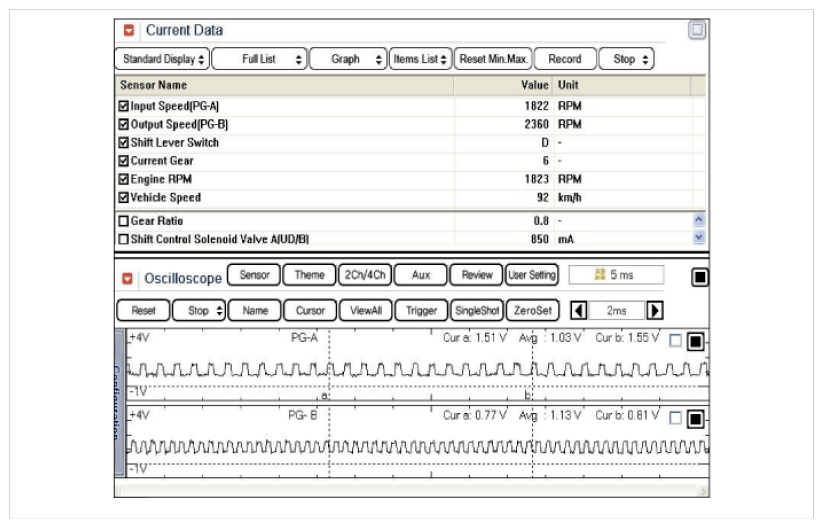

Fig 2: Input And Output Speed Signal Waveform
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
