Automatic Transaxle Control System - 2.0L
›
Output Speed Sensor
›
Troubleshooting
›
Signal Waveform
Signal Waveform

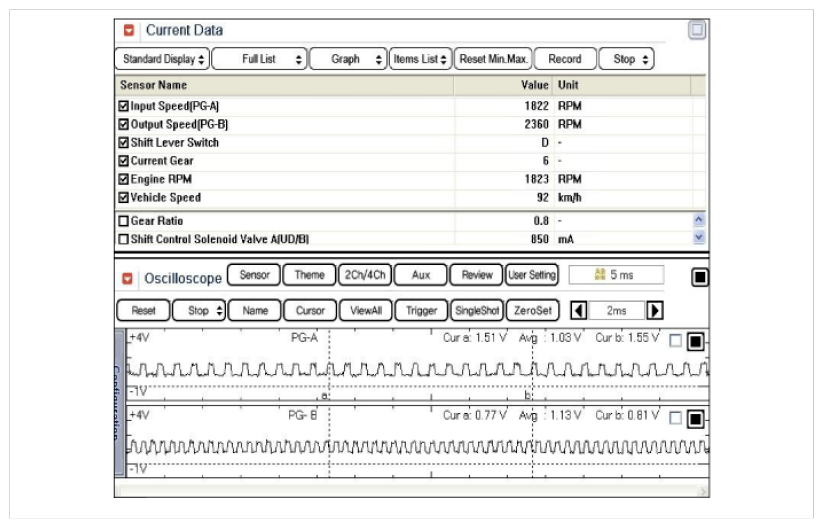

Fig 1: Display - Vehicle Speed Current Data Screen
Courtesy of HYUNDAI MOTOR AMERICA

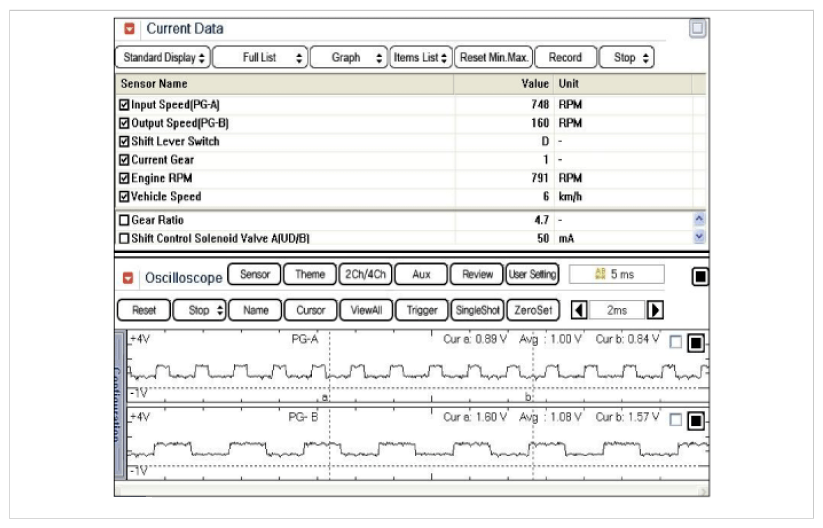

Fig 2: Display - Vehicle Speed Current Data Screen
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
