Repair Procedures: Inspection

1. Disconnect the ignition switch connector (B) and key warning switch connector (A) from under the steering column.

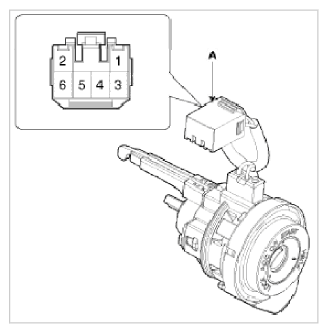

   Fig 1: Identifying Key Warning Switch Connector

   Courtesy of HYUNDAI MOTOR AMERICA

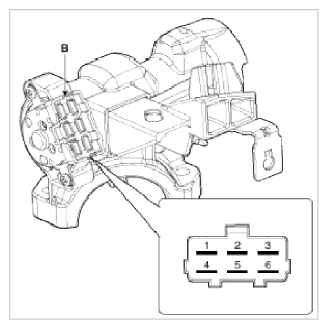

   Fig 2: Identifying Ignition Switch Connector

   Courtesy of HYUNDAI MOTOR AMERICA
2. Check for continuity between the terminals.
3. If continuity is not specified, replace the switch.

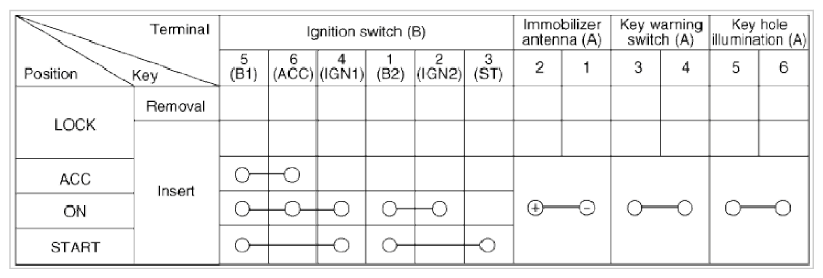

Fig 3: Ignition Switch Continuity Reference Chart

Courtesy of HYUNDAI MOTOR AMERICA
