Driver Power Window Switch

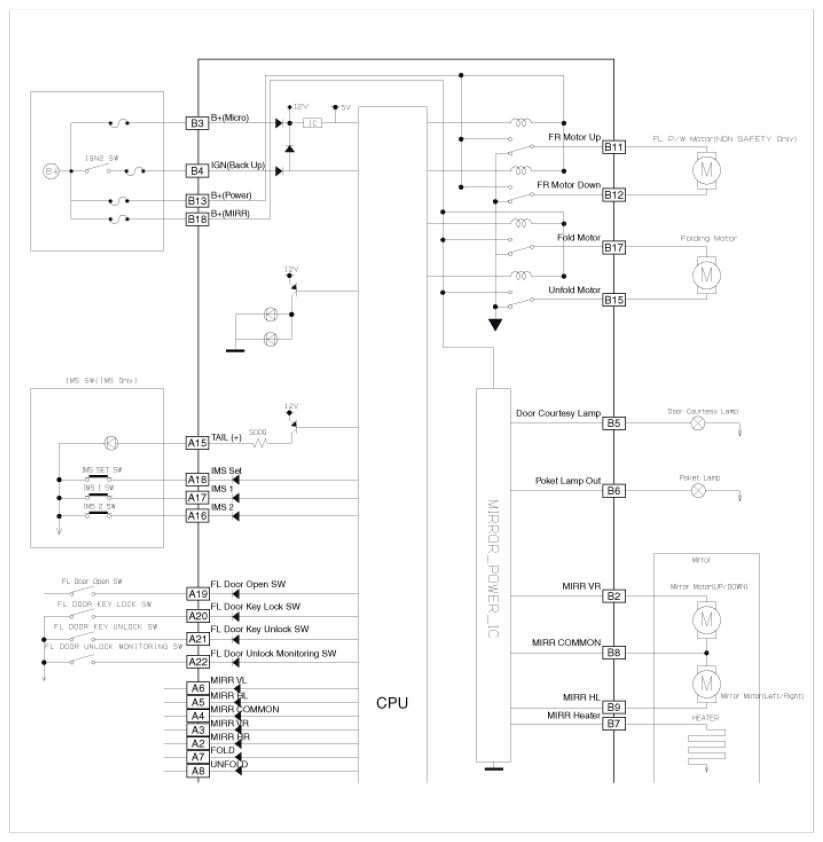

Fig 1: Driver Power Window Switch - Circuit Diagram (1 Of 2)
G09366361Courtesy of HYUNDAI MOTOR AMERICA

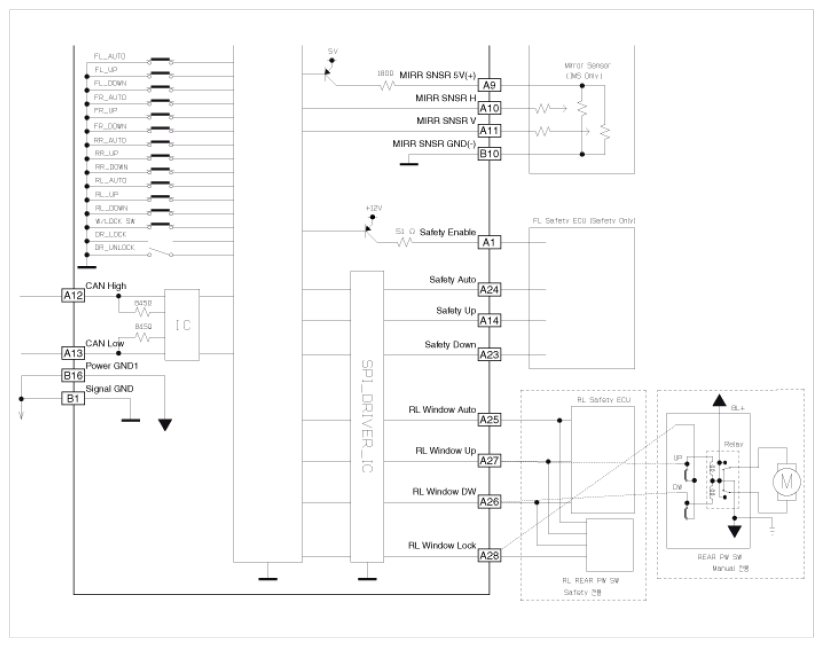

Fig 2: Driver Power Window Switch - Circuit Diagram (2 Of 2)
G09366362Courtesy of HYUNDAI MOTOR AMERICA
