Home › Hyundai › 2014 › Santa Fe Sport Base, AWD › Repair and Diagnosis › Electrical › Starter › Button Engine Start System › Start Stop Button › Components and Components Location › Component

Components and Components Location: Component

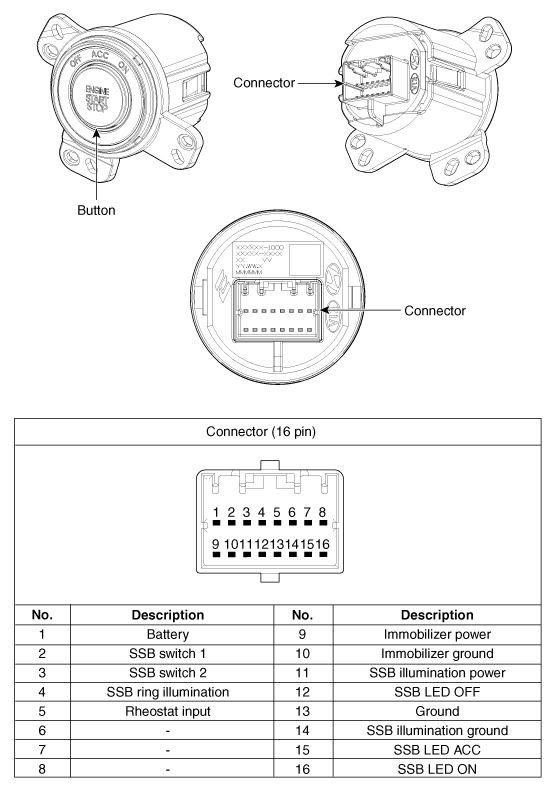

Fig 1: Identifying Start / Stop Button And Connector
G09366633Courtesy of HYUNDAI MOTOR AMERICA
