Circuit Diagram

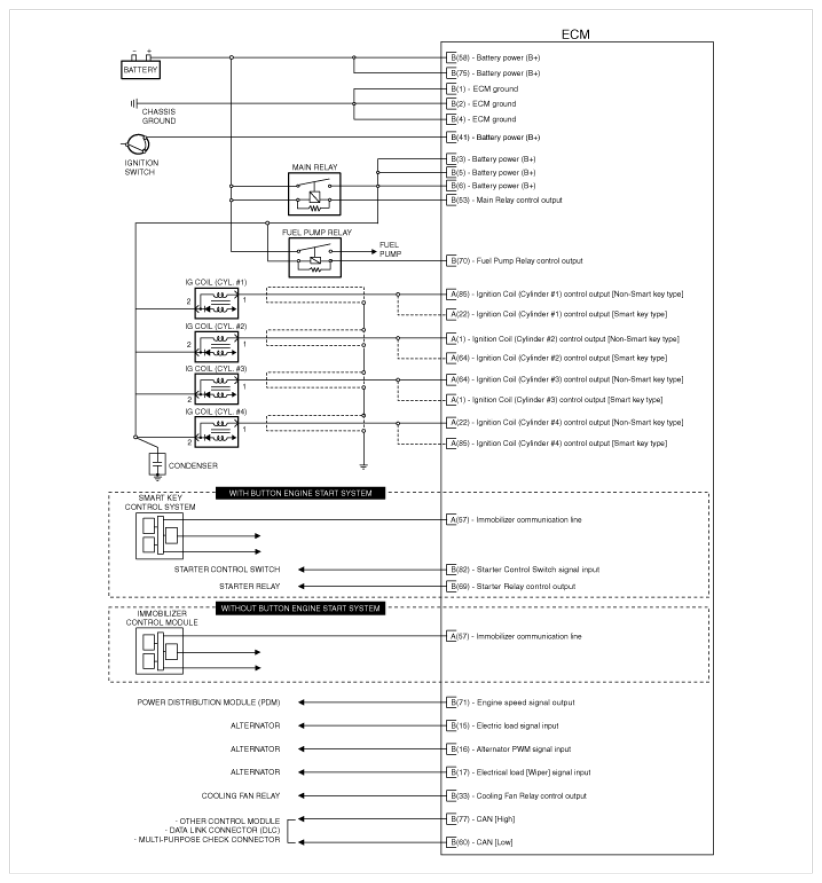

Fig 1: ECM - Circuit Diagram (1 Of 4)
G09367439Courtesy of HYUNDAI MOTOR AMERICA

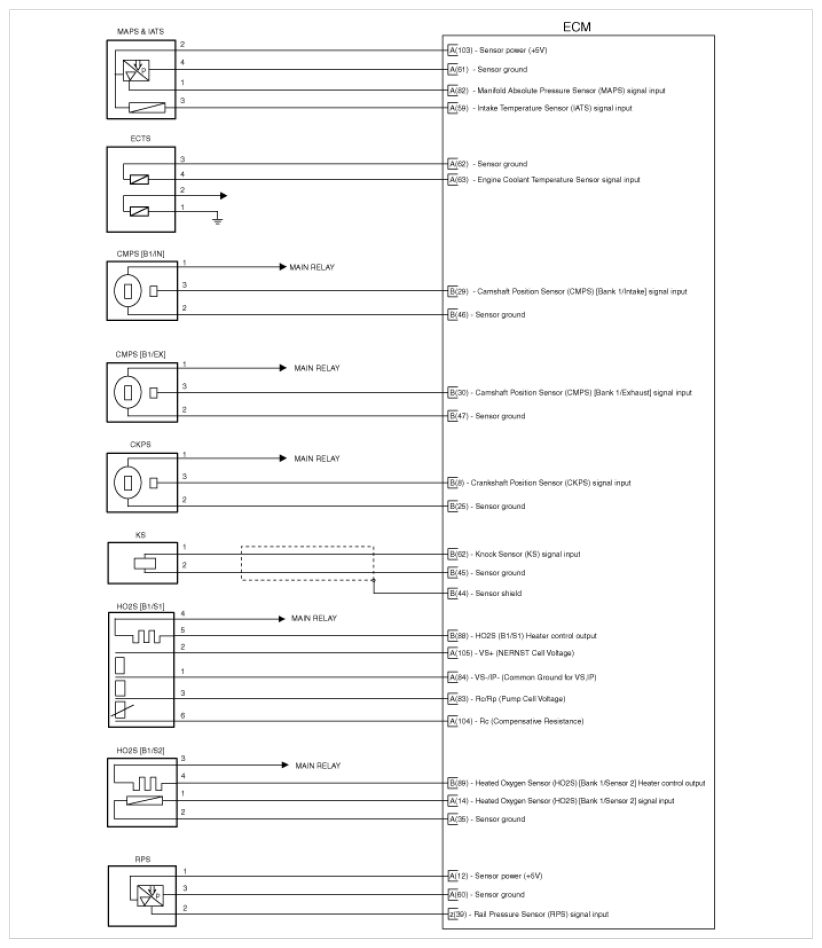

Fig 2: ECM - Circuit Diagram (2 Of 4)
G09367440Courtesy of HYUNDAI MOTOR AMERICA

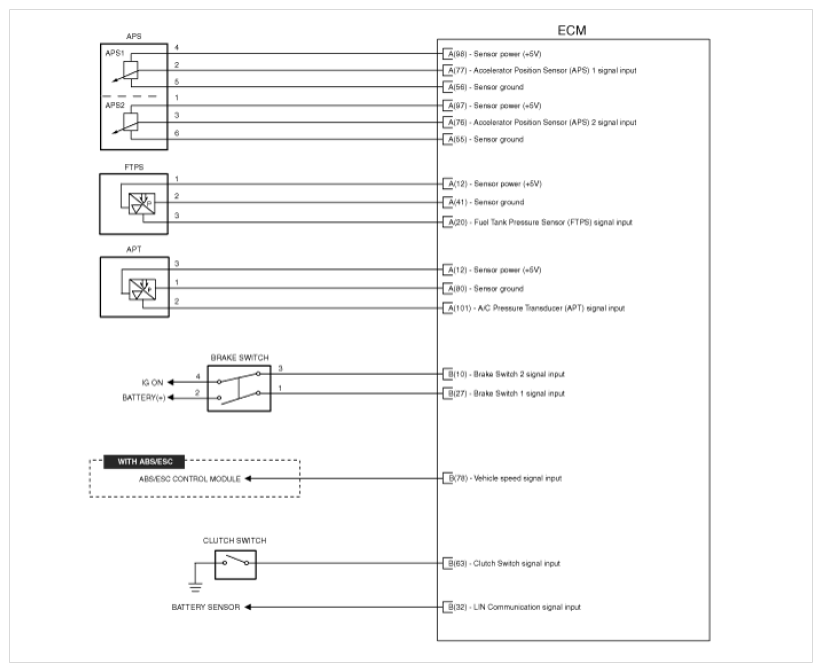

Fig 3: ECM - Circuit Diagram (3 Of 4)
G09367441Courtesy of HYUNDAI MOTOR AMERICA

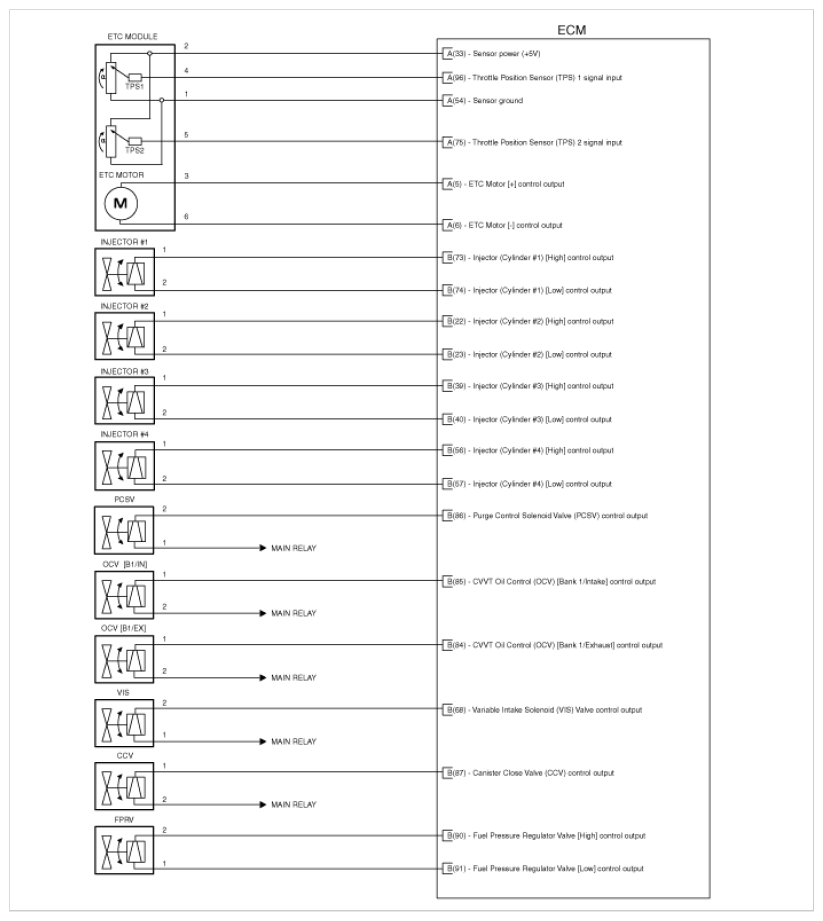

Fig 4: ECM - Circuit Diagram (4 Of 4)
G09367442Courtesy of HYUNDAI MOTOR AMERICA
