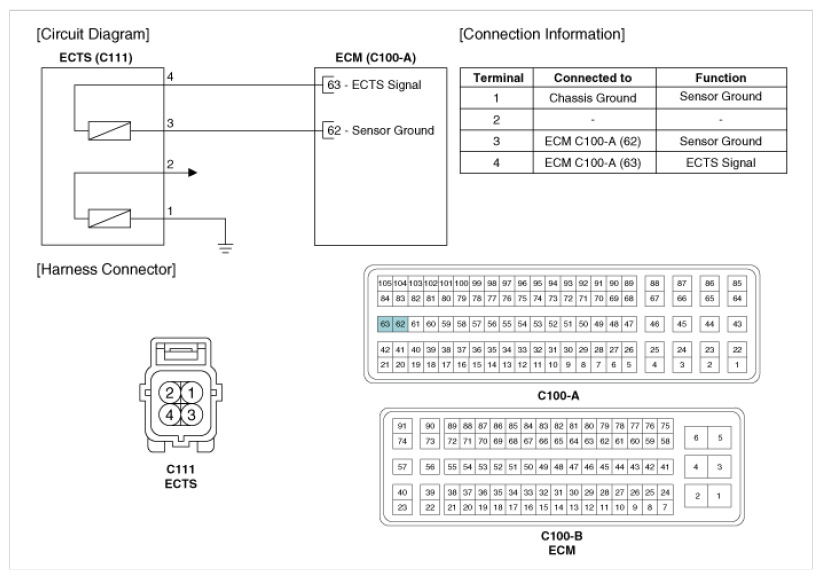

Home › Hyundai › 2014 › Santa Fe Sport Base, AWD › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 2.4L › Engine Coolant Temperature Sensor (ECTS) › Schematic Diagrams › Circuit Diagram
